Home All Products Air Brake DOT Air Brake Fittings for Air Brake Tubing Compression Fittings (DOT) SKU: 790739
Share
Print
APPROVED SUPPLIER

A/B - Nylon Tubing - S/S Insert 1/4

Hover over image to magnify

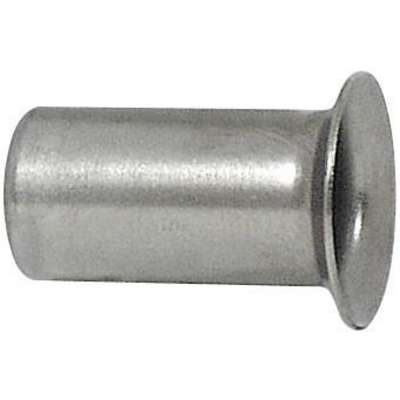

A/B S/S Insert 1/4
A/B S/S Insert 1/4

#790739 | Pkg Qty: 50

Not currently available. Call your service advisor for availability.

Shipping to 60045
|

Technical Specifications

Brand
APPROVED SUPPLIER
Mfr. Part Number
790739
Compression Nut Torque Value
85 - 115 in. lbs.
Package Quantity
50
DOT Approved
Yes
Pressure Connection Cross
N/A
DOT Compression Fittings Type
Inserts
Shipping Weight
0.05 lb.
Fitting Connection (A) Style
A/B Tubing Insert
System of Measurement
Fractional
Fitting Connection (A) Tube Size
1/4 in.
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Style
Compression Fitting
Thread Size
7/16"-24
Fitting Type
Air Brake Fitting
Tube Outside Diameter
1/4 in.
Grade
CA360
Vibration Resistance
Fair
Insert Outside Diameter
.163 in.
Weatherhead Cross
N/A
Material
Stainless Steel
Working Pressure
Up to 150 psi
Meets Standards
SAE and DOT FMVSS 571.106

Product Description

Typical Applications: Parker® • Air brakes, instrumentation, air controls, air bags, and air seats. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J844 type A or B air brake tubing. • Not lead free. • Includes pre-applied thread sealant to pipe threads.
• Pipe threads are the most common fitting style used in the United States and Canada.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
7907390
A/B S/S Insert 1/4
 NameItemDescription
UNSPSC CODESUNSPSC CODES40141700
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004A/B S/S Insert
