EATON

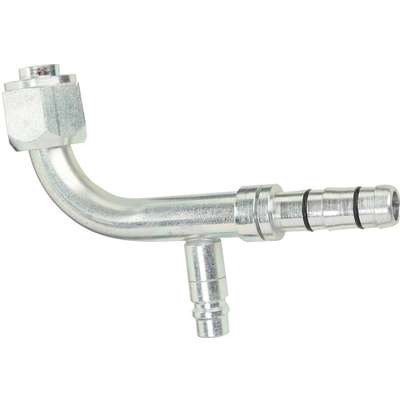

Ez Clip Fit.90` Female O-Ring R134A Low Side #12 X 7/8-14
Hover over image to magnify
Technical Specifications
Key Specifications
Angle
90 deg.
Length
4.83 in.
Brand
EATON
Mfr. Part Number
FJ3012-01-1012S
Connection Type
Female
Package Quantity
1
Height
1.89 in.
Shipping Weight
0.42 lb.
Hex Size
1.06 in.
System of Measurement
Fractional
Hose Inside Diameter
5/8 in.
Thread Size
7/8"-14
Hose Size
#12
Trade Name
EZ-CLIP SYSTEM
Item
EZ-Clip System Hose End
General
For Use With
Female O-Ring and Low Side Port
Product Description
E-Z Clip System™ Hose End
- 90° Female O-Ring (Short Pilot) With R134A Low Side Port.
- Hose Size: 12 (5/8 Id)
- Thread: 7/8-14
- Overall Length: 4.83"
- Cross Reference: Fj3012-01-1012S
- This Connection Is Common To Air Conditioning Systems, Both In Vehicle And Commercial Applications.
- Both Female And Male Connections Have A Pilot, Either Long Or Short.
- The Seal Takes Place By Compressing An O-Ring Adjacent To The Bead Of The Tube.
- The Threads Hold The Connection Together Mechanically.
- Use With Gh134W Hose. E-Z Clip System™ Assembly Instructions
Item Barcode
90' Fem Oring w/R134a Low Side
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | FJ3012-02-1012 | 90' FM ORING R134a LOW#12 |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 001-001-227 | 90` Fem Oring w/R134a Low |
