DANFOSS

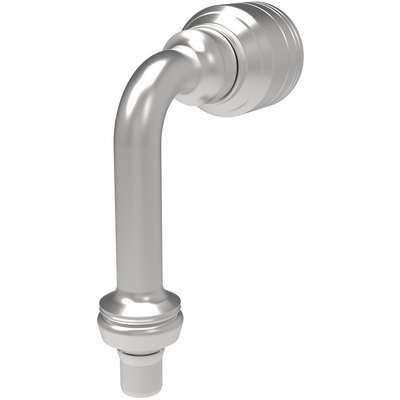

Danfoss Crimp Fitting, 06Z-BC86, 90 Degree Elbow, Long Drop, STC Male, 3/8" x 3/8"
Hover over image to magnify
Technical Specifications
Key Specifications
Brand
DANFOSS
Package Quantity
1
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Series
Z-Series
Finish
Dura-Kote
Shape
90° Elbow (Long Drop)
Hose Cutoff Factor
1.34 in.
Style
STC Male
Hose Inside Diameter
3/8 in.
System of Measurement
Fractional
Item
Crimp Fitting
Trade Name
WEATHERGRIP
Material
Carbon Steel
Tube Size
3/8 in.
Mfr. Part Number
06Z-BC86
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
General
Application
General purpose low, medium and high pressure hydraulics.
Product Description
- Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
- DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
- Bite the wire technology offers best in class connection and sealing.
- Low profile and short socket design offers greater routing flexibility.
- Class zero leakage SAE J1176 on approved hose styles.
- Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
- Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
06Z-BC86 3/8x3/8 M Stc 90EL
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 06Z-BC86 | CRIMP END 06Z-BC86 |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 06Z-BC86 |
