DANFOSS

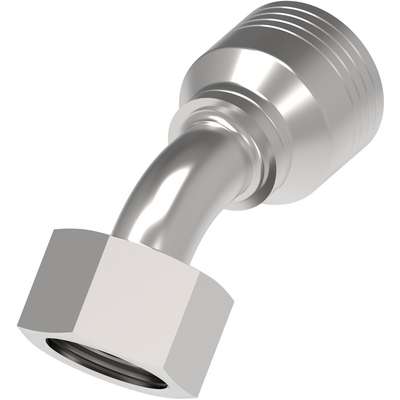

Danfoss Crimp Fitting, 04Z-10E, 45 Degree Elbow DIN Heavy Female Swivel, 1/4" x 10 mm
Hover over image to magnify
Technical Specifications
Key Specifications
Brand
DANFOSS
Package Quantity
1
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Series
Z-Series
Finish
Dura-Kote
Shape
45° Elbow
Hose Cutoff Factor
1-1/2 in.
Style
DIN (Heavy) Female Swivel
Hose Inside Diameter
1/4 in.
Thread Size
M18 x 1.50
Item
Crimp Fitting
Trade Name
WEATHERGRIP
Material
Carbon Steel
Tube Size
10 mm
Mfr. Part Number
04Z-10E
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
General
Application
General purpose low, medium and high pressure hydraulics.
Product Description
- Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
- DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
- Bite the wire technology offers best in class connection and sealing.
- Low profile and short socket design offers greater routing flexibility.
- Class zero leakage SAE J1176 on approved hose styles.
- Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
- Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
04Z-10E 1/4x10mmMSW DIN24H 45E
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 04Z-10E | CRIMP END 04Z-10E |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 04Z-10E |
