DANFOSS

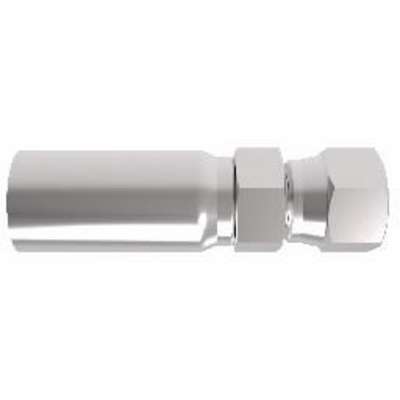

Danfoss Crimp Fitting, 16Z-066, Straight Straight Pipe Female Swivel (NPSM), 1" x 1"

Hover over image to magnify
16Z-066 1x1 Fmsw Npsm St
16Z-066 1x1 Fmsw Npsm St

#292916 | Pkg Qty: 1

In Stock

Shipping to 43085
|
Catalog: H12

Technical Specifications

Key Specifications
Brand
DANFOSS
Series
Z-Series
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Shape
Straight
Finish
Dura-Kote
Shipping Weight
0.78 lb.
For Pipe Size
1 in.
Style
Straight Pipe Female Swivel (NPSM)
Hose Cutoff Factor
1.18 in.
System of Measurement
Fractional
Hose Inside Diameter
1 in.
Thread Size
1"-11-1/2
Item
Crimp Fitting
Trade Name
WEATHERGRIP
Material
Carbon Steel
Tube Size
1 in.
Mfr. Part Number
16Z-066
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
Package Quantity
1
General
Application
General purpose low, medium and high pressure hydraulics.

Product Description

  • Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
  • DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
  • Bite the wire technology offers best in class connection and sealing.
  • Low profile and short socket design offers greater routing flexibility.
  • Class zero leakage SAE J1176 on approved hose styles.
  • Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
  • Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
