DANFOSS

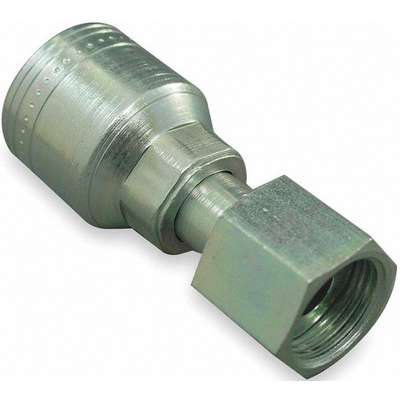

Danfoss Crimp Fitting, 12Z-S70, Straight For-Seal Female Swivel, 3/4" x 5/8"
Hover over image to magnify
#292462 | Pkg Qty: 1
Not currently available. Call your service advisor for availability.
Shipping to 60045
Catalog: H13
Technical Specifications
Key Specifications
Brand
DANFOSS
Package Quantity
1
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Series
Z-Series
Connection Type
Female
Shape
Straight
Finish
Dura-Kote
Shipping Weight
0.48 lb.
Fitting Style
Swivel
Style
FOR-SEAL® Female Swivel
Hex Size
1.12 in.
Swivel Nut Hex Size
1.12 in.
Hose Cutoff Factor
1.62 in.
System of Measurement
Fractional
Hose Inside Diameter
3/4 in.
Thread Size
1"-14
Item
Crimp Fitting
Trade Name
WEATHERGRIP
Material
Carbon Steel
Tube Size
5/8 in.
Mfr. Part Number
12Z-S70
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
General
Application
General purpose low, medium and high pressure hydraulics.
Product Description
- Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
- DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
- Bite the wire technology offers best in class connection and sealing.
- Low profile and short socket design offers greater routing flexibility.
- Class zero leakage SAE J1176 on approved hose styles.
- Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
- Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
12Z-S70 3/4x5/8 Fmsw Frsl St
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 12Z-S70 | CRIMP END 12Z-S70 |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 12Z-S70 |
