DANFOSS

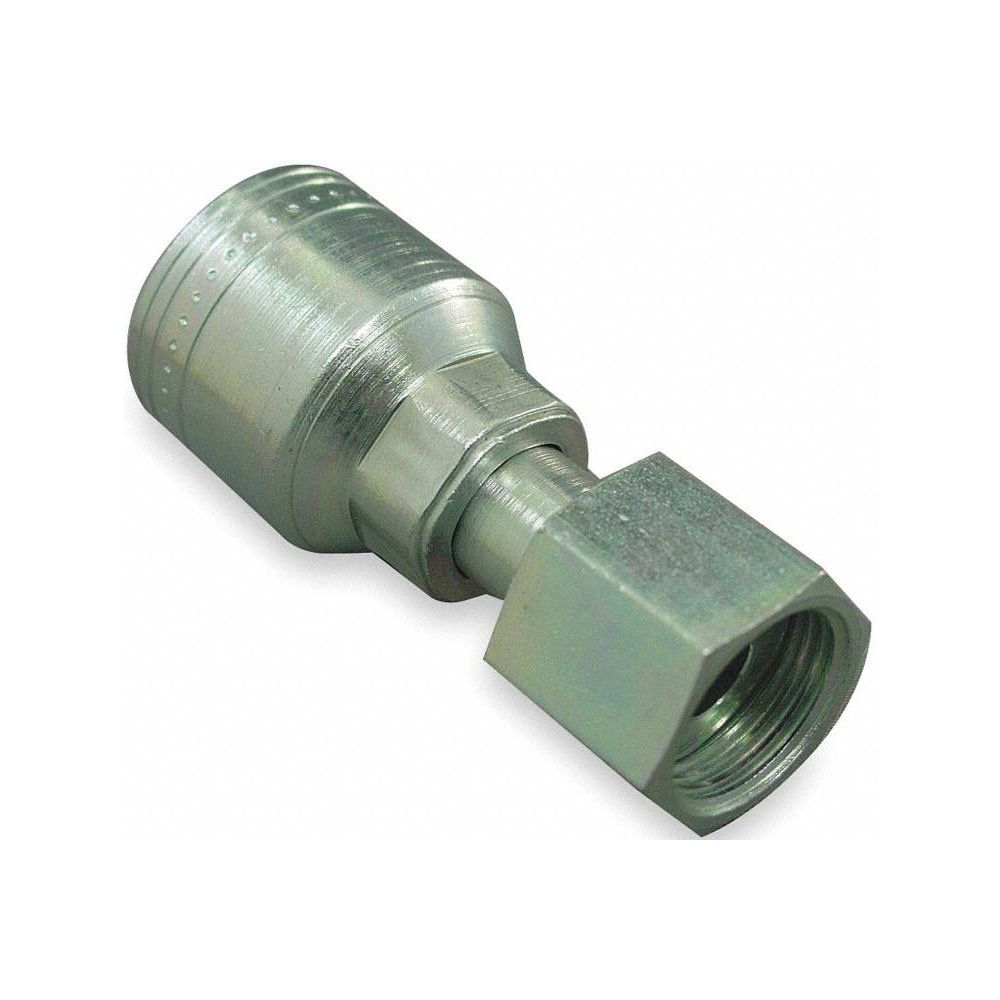

Danfoss Crimp Fitting, 04Z-S64, Straight For-Seal Female Swivel, 1/4" x 1/4"
Hover over image to magnify
Technical Specifications
Key Specifications
Brand
DANFOSS
Series
Z-Series
Compatible Hose Styles
H180, H145, H145R, H190, H190H, H280, H290, H290H, H290L, EC115, EC215
Shape
Straight
Finish
Dura-Kote
Shipping Weight
0.12 lb.
Hose Cutoff Factor
1.03 in.
Style
FOR-SEAL® Female Swivel
Hose Inside Diameter
1/4 in.
System of Measurement
Fractional
Item
Crimp Fitting
Thread Size
9/16"-18
Material
Carbon Steel
Trade Name
WEATHERGRIP
Mfr. Part Number
04Z-S64
Tube Size
1/4 in.
Package Quantity
1
Working Pressure
Determined by the maximum working pressure for hose size and hose end configuration, whichever is lesser.
General
Application
General purpose low, medium and high pressure hydraulics.
Product Description
- Eaton Weatherhead's Z-Series Braided Hose Fittings are engineered for high pressure hydraulic systems.
- DURA-KOTE™ plating technology provides up to 1,000 hours of corrosion resistance.
- Bite the wire technology offers best in class connection and sealing.
- Low profile and short socket design offers greater routing flexibility.
- Class zero leakage SAE J1176 on approved hose styles.
- Over 550 part numbers available with a wide variety of metric and imperial threaded terminal ends.
- Eaton's MatchMate™ program provides identification markings on the hose, hose ends and crimp dies for quick and easy assembly.
Item Barcode
04Z-S64 1/4x1/4 Fmsw Frsl St
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 04Z-S64 | CRIMP END 04Z-S64 |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 04Z-S64 |
