CONTINENTAL

B2-Jcfx90S-0404 Hydraulic Crimp Fitting

Hover over image to magnify

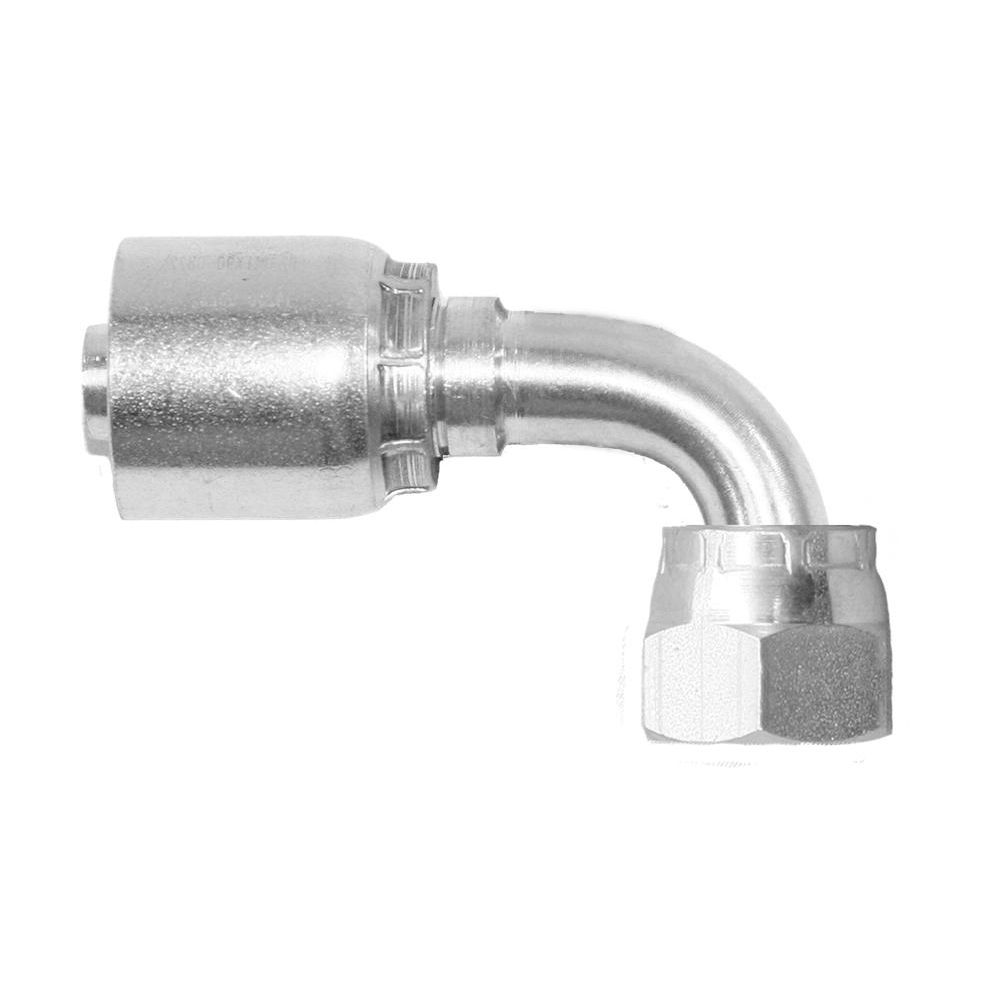

B2-JCFX90S-0404 Crimp Fitting
B2-JCFX90S-0404 Crimp Fitting

#100169 | Pkg Qty: 1

In Stock

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CONTINENTAL
Series
B2
Compatible Hose Styles
SR1SN, DR1SN, SFS, SR2SN, DR2SN, LR2SN, LR16SC, 16SC, ARC16SC, DR16SC, XR16SC, SCP3, ACP3, XCP3, XCP4, ACP4, SR12, ARC12
Shape
90° Elbow (Short Drop)
Finish
Silver Chromium-6 Free Zinc Plating
Shipping Weight
1 lb.
Hose Cutoff Factor
1.06 in.
Style
JIC 37° Female Swivel
Hose Inside Diameter
1/4 in.
System of Measurement
Fractional
Item
Hydraulic Fitting
Thread Size
7/16"-20
Material
Carbon Steel
Tube Size
1/4 in.
Mfr. Part Number
20241929
Working Pressure
Determined by the maxiumum working pressure for hose size and hose end configuration, whichever is lesser.
Package Quantity
1
General
Application
General purpose low, medium and high pressure hydraulics.

Product Description

  • No Skive - Assemblies made faster, with fewer steps and less mess.
  • Full-Length Crimp - Maximum coupling retention for a safe and longer lasting assembly; easier to crimp with a lower profile.
  • Bite-to-Wire Technology - Delivers maximum coupling retention for safer assembly and reliability under the toughest pressure.
  • Zinc Plating - Offers corrosion resistance for extended hose assembly and fitting life, easily surpassing the corrosion resistance of SAE J516 and ASTM B117.
  • Single Piece Construction - Provides ultimate protection against leaks and potential leak paths.
Item Barcode
1001690
B2-JCFX90S-0404 Crimp Fitting
 NameItemDescription
UNSPSC CODESUNSPSC CODES27121700
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004B2-JCFX90S-0 404 HOSE END
