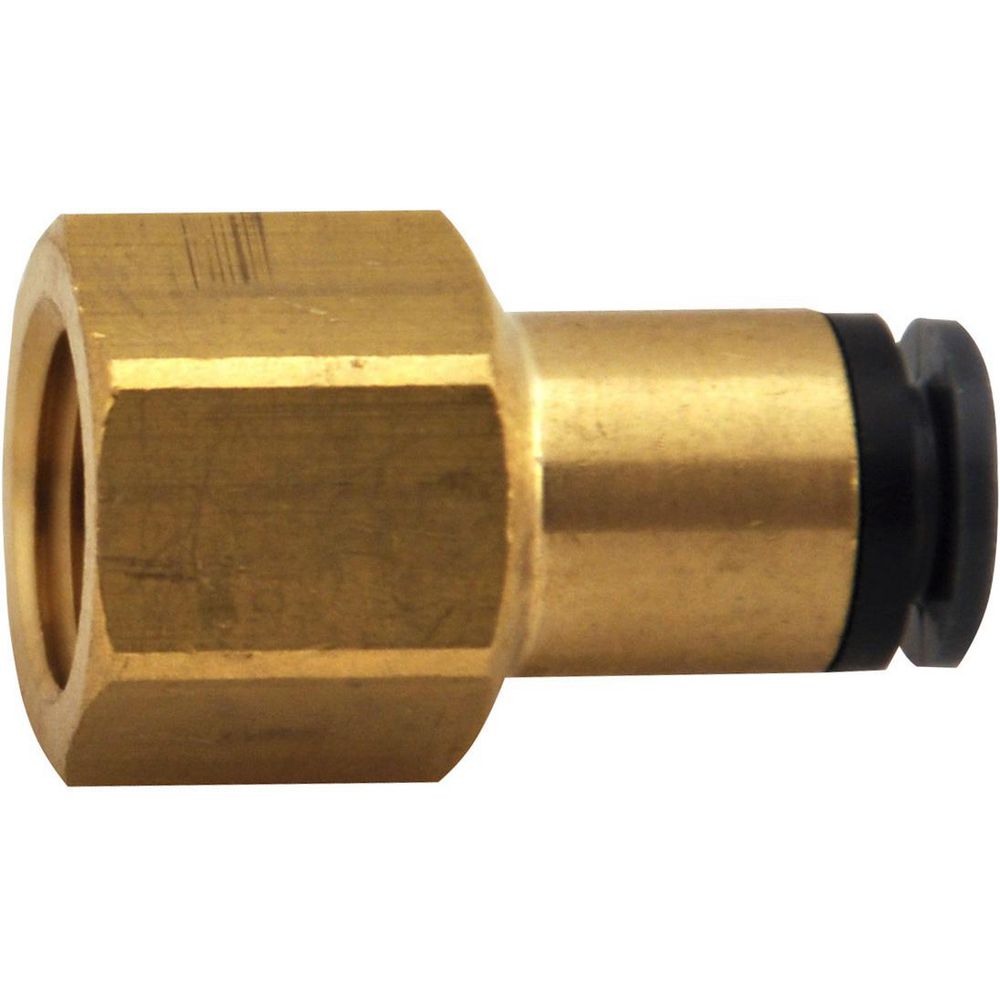

Brass/Composite, Female 90° Connector, Air Brake Push-to-Connect, 1/4 in. x 1/8 in.

Hover over image to magnify
Composite Dot Fem Conn 1/4X1/8
Composite Dot Fem Conn 1/4X1/8
Double tap image to magnify
Composite Dot Fem Conn 1/4X1/8
Composite Dot Fem Conn 1/4X1/8

#98795Pkg Qty: 5

In Stock

Shipping to 43085
|
Catalog: G9

Technical Specifications

Body Material
Composite and Brass
Hex Size
3/8 in.
Brand
APPROVED SUPPLIER
Mfr. Part Number
98795
Composite DOT Push-to-Connect Fittings Type
Connectors
Package Quantity
5
Connection Type
Female
Pipe Thread
1/8 in.
DOT Approved
Yes
Plating
None
Fitting Connection (A) Style
Push to Connect
Pressure Connection Cross
N/A
Fitting Connection (A) Tube Size
1/4 in.
Shape
Connector
Fitting Connection (B) Gender
Male
Shipping Weight
0.2 lb.
Fitting Connection (B) Pipe Size
1/8 in.
System of Measurement
Fractional
Fitting Connection (B) Style
NPTF Pipe
Tube Outside Diameter
1/4 in.
Fitting Connection (B) Thread Size
1/8-27
Vibration Resistance
Good
Fitting Material
Brass
Weatherhead Cross
N/A
Fitting Style
Female connector
Working Pressure
150 psi
Fitting Type
Push-To-Connect

Product Description

  • Typical Applications:
  • Air brakes, instrumentation, air controls, air bags, and air seats.
  • Exceeds DOT pressure requirements for air brake systems.
  • For use with SAE J844 type A or B air brake tubing.
  • Quick Disconnect - Simply push tubing In, no tools or loose parts to handle in tight places.
  • It is recommended to applied thread sealant to all pipe threads.
  • Pipe threads are the most common fitting style used in the United States and Canada.

Item Barcode

0987950
Composite Dot Fem Conn 1/4X1/8
