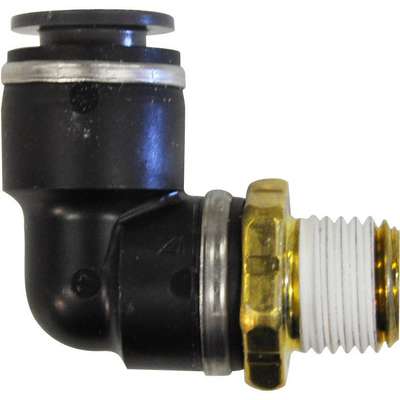

Composite, Male 90° Connector, Air Brake Push-to-Connect, 5/32 in. (4MM) x 1/8 in.

Name: Composite, Male 90° Connector, Air Brake Push-to-Connect, 5/32 in. (4MM) x 1/8 in.
Brand: APPROVED SUPPLIER
SKU: 0987370
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#98737Pkg Qty: 5

In Stock

Shipping to 43085

Catalog: G11

Technical Specifications

Angle

90 deg.

Fitting Type

Push-To-Connect

Body Material

Composite

Hex Size

5/16 in.

Brand

APPROVED SUPPLIER

Item

Air Brake Elbow

Composite Non DOT Push-to-Connect Fittings Type

Elbows

Mfr. Part Number

98737

Connection Type

Male

Package Quantity

DOT Approved

Pipe Thread

1/8 in.

Fitting Connection (A) Style

Push to Connect

Plating

Nickel

Fitting Connection (A) Tube Size

5/32 in.

Shape

Elbow

Fitting Connection (B) Gender

Male

Shipping Weight

.1 lb.

Fitting Connection (B) Pipe Size

1/8 in.

System of Measurement

Fractional

Fitting Connection (B) Style

NPTF Pipe

Tramec Sloan Cross

S769PMT-5/32-2

Fitting Connection (B) Thread Size

1/8-27

Tube Outside Diameter

5/32 in.

Fitting Material

Brass/Composite

Vibration Resistance

Good

Fitting Style

Male Connector

Working Pressure

150

Product Description

Typical Applications: Parker • Air brakes, instrumentation, air controls, air bags, and air seats. • Does not meet DOT pressure requirements for air brake systems.
• For use with SAE J844 type A or B air brake tubing. • It is recommended to applied thread sealant to all pipe threads.
• Quick Disconnect - Simply push tubing In, no tools or loose parts to handle in tight places.
• Body can be rotated after assembly for proper orientation. • Pipe threads are the most common fitting style used in the United States and Canada. • Crosses References: Parker W369PLP-4M-2, Tramec Sloan S769PMT-5/32-2, Phillips 12-94052, Grainger 1PFA2
