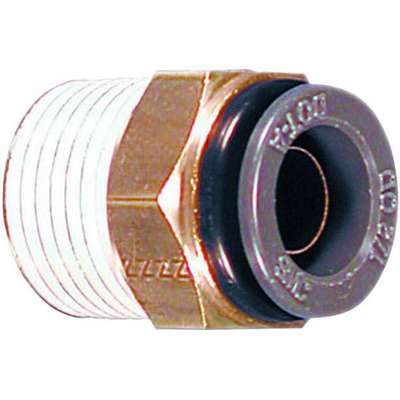

APPROVED SUPPLIERComposite, Male Straight Connector, Air Brake Push-to-Connect, 1/4 in. x 1/4 in.
Hover over image to magnify
Technical Specifications
Body Material
Composite and Brass
Hex Size
9/16
Brand
APPROVED SUPPLIER
Meets Standards
SAE J844
Composite DOT Push-to-Connect Fittings Type
Connectors
Mfr. Part Number
98713
Connection Type
Male
Package Quantity
5
DOT Approved
Yes
Pipe Thread
1/4 in.
Fitting Connection (A) Style
Push to Connect
Plating
None
Fitting Connection (A) Tube Size
1/4
Pressure Connection Cross
N/A
Fitting Connection (B) Gender
Male
Shape
Connector
Fitting Connection (B) Pipe Size
1/4 in.
Shipping Weight
.13 lb.
Fitting Connection (B) Style
NPTF Pipe
System of Measurement
Fractional
Fitting Connection (B) Thread Size
1/4-18
Tube Outside Diameter
1/4 in.
Fitting Material
Brass/Composite
Vibration Resistance
Moderate
Fitting Style
Male connector
Weatherhead Cross
N/A
Fitting Type
Push-To-Connect
Working Pressure
150
Product Description
- Typical Applications:
- Non-Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Does not meet SAE or DOT specificatin for air brake applications.
- It is recommended to applied thread sealant to all pipe threads.
- Pipe threads are the most common fitting style used in the United States and Canada.
Frequently Bought Together
Currently Viewing
Composite Dot Ml Conn 1/4X1/4
| #98713 | Pkg Qty: 5
| #357-1 | Pkg Qty: 1
Available Assortments View All
Item Barcode
Composite Dot Ml Conn 1/4X1/4
| Name | Item | Description | |
|---|---|---|---|
 | Phillips | 12-93044 | COMPOSIT DOT ML CON 1/4 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | Fittings MALE CONNECTOR |
