1/4" Iso B Series Fd45-1002-04-04 Male/Female Pipe

Hover over image to magnify

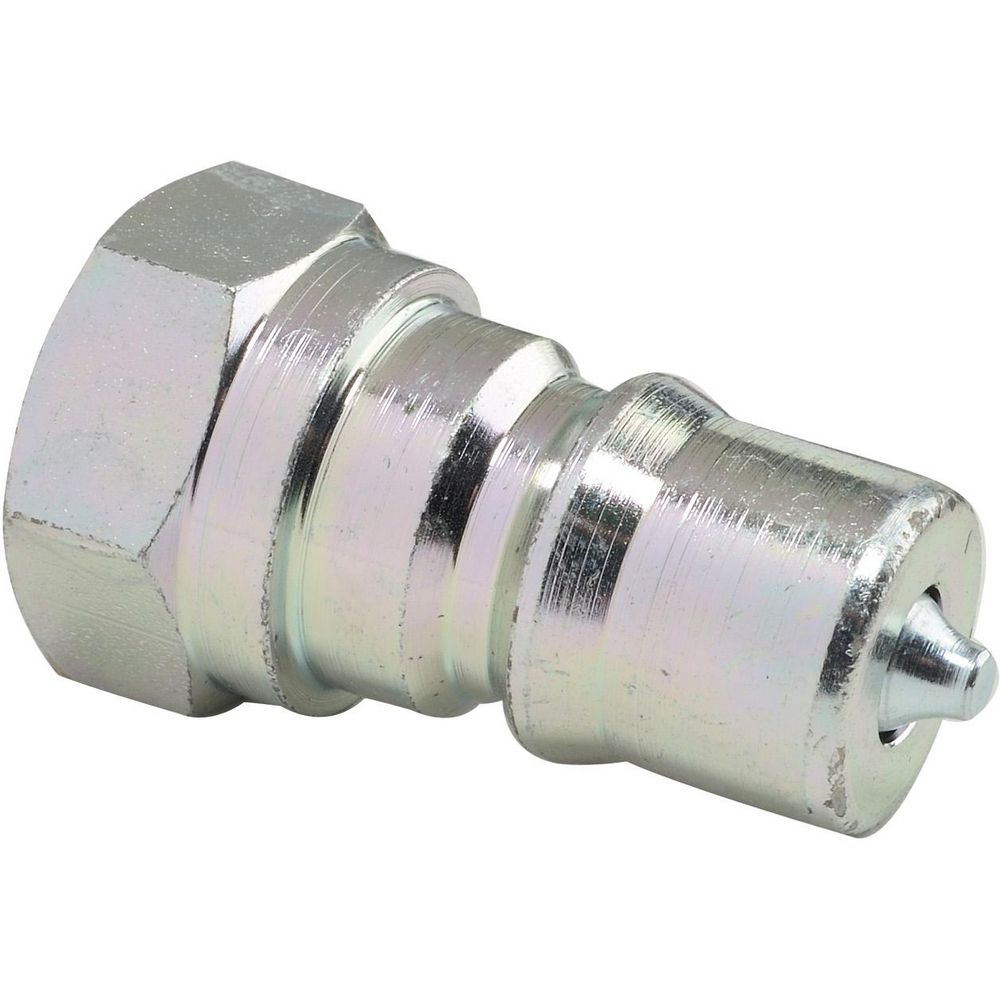

1/4" ISO B FD45-1002-04-04
1/4" ISO B FD45-1002-04-04
Double tap image to magnify
1/4" ISO B FD45-1002-04-04
1/4" ISO B FD45-1002-04-04

#97482Pkg Qty: 1

Not currently available. Call your service advisor for availability.

Shipping to 43085
|
Catalog: H33

Technical Specifications

Body Material
Steel
Overall Length
1-1/2 in.
Brand
APPROVED SUPPLIER
Package Quantity
1
Connection Type
Male
Seal Material
Buna-N
Maximum Operating Pressure
5000 psi
Shipping Weight
0.08 lb.
Mfr. Part Number
97482
Temperature Range (Deg. F)
-40 to +250 deg. F

Product Description

Fd45 Series Hydraulic Nipple
  • Male Half 1/4 With Female Pipe 1/4-18
  • Industrial Interchange Coupling Conforming Dimensionally To Iso Standard 7241/1 Series B.
  • Standard Seal Material: Buna-N
  • Standard Body Material: Zinc Plated Steel
  • Max Operating Pressure: 5,000 PSI
  • Overall Length: 1.50"
  • Cross Reference : Fd45-1002-04-04
