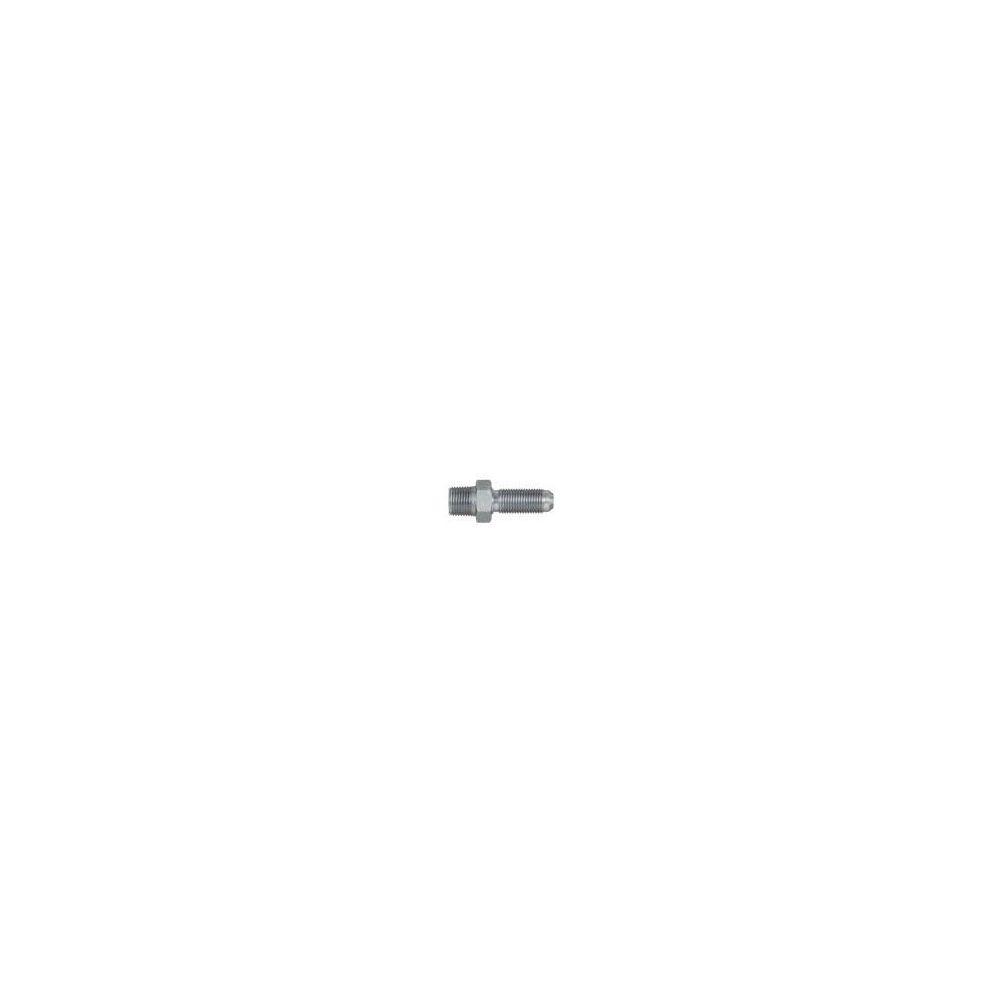

JIC Male Bulkhead to Male Pipe Adaptor 1/4 in. x 1/4 in.
Hover over image to magnify
#97293 | Pkg Qty: 5
$28.85 pkg | $5.77 ea
In Stock
Shipping to 60045
Technical Specifications
Brand
APPROVED SUPPLIER
Fitting Type
JIC
Connection Type
Male
Grade
1040
DOT Approved
No
Heat Treated
No
Eaton/Aeroquip Cross
2240-4-4s
Item
Flare Fitting Bulkhead
Finish
Trivalent Zinc Plated
Material
Carbon Steel
Fitting Connection (A) Gender
Male
Mfr. Part Number
97293
Fitting Connection (A) Style
JIC
Package Quantity
5
Fitting Connection (A) Tube Size
1/4 in.
Pipe Thread
1/4"-18
Fitting Connection (A) Tube Thread Size
7/16"-20
Pressure Connection Cross
2706-04-04
Fitting Connection (B) Gender
Male
Shape
Bulkhead Connector
Fitting Connection (B) Pipe Size
1/4 in.
Shipping Weight
.42 lb.
Fitting Connection (B) Pipe Thread Size
1/4-18 in.
System of Measurement
Fractional
Fitting Connection (B) Style
Pipe
Thread Size
7/16"-20
Fitting Finish
Zinc; Clear Trivalent Chromate
Tube Flare
37 deg.
Fitting Hex Size
11/16
Tube Outside Diameter
.44
Fitting Material
Carbon Steel
Vibration Resistance
Good
Fitting Shape
Straight
Weatherhead Cross
C5274x7
Fitting Style
Male Bulkhead
Working Pressure
6000
Product Description
- Typical Applications: High pressure hydraulic used on construction, agricultural, and transportation equipment.
- Can be used with with steel, copper, and aluminum flared tubing.
- JIC fittings are also known as 37° flared fittings.
- Good vibration resistance when used with two and three piece nuts.
Item Barcode
MM Bulkhead Conn 1/4X7/16
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 40183101 | |
 | VMRS (ATA) CODES | 053-008-004 | STEEL FIT JIC M BLK HD |
