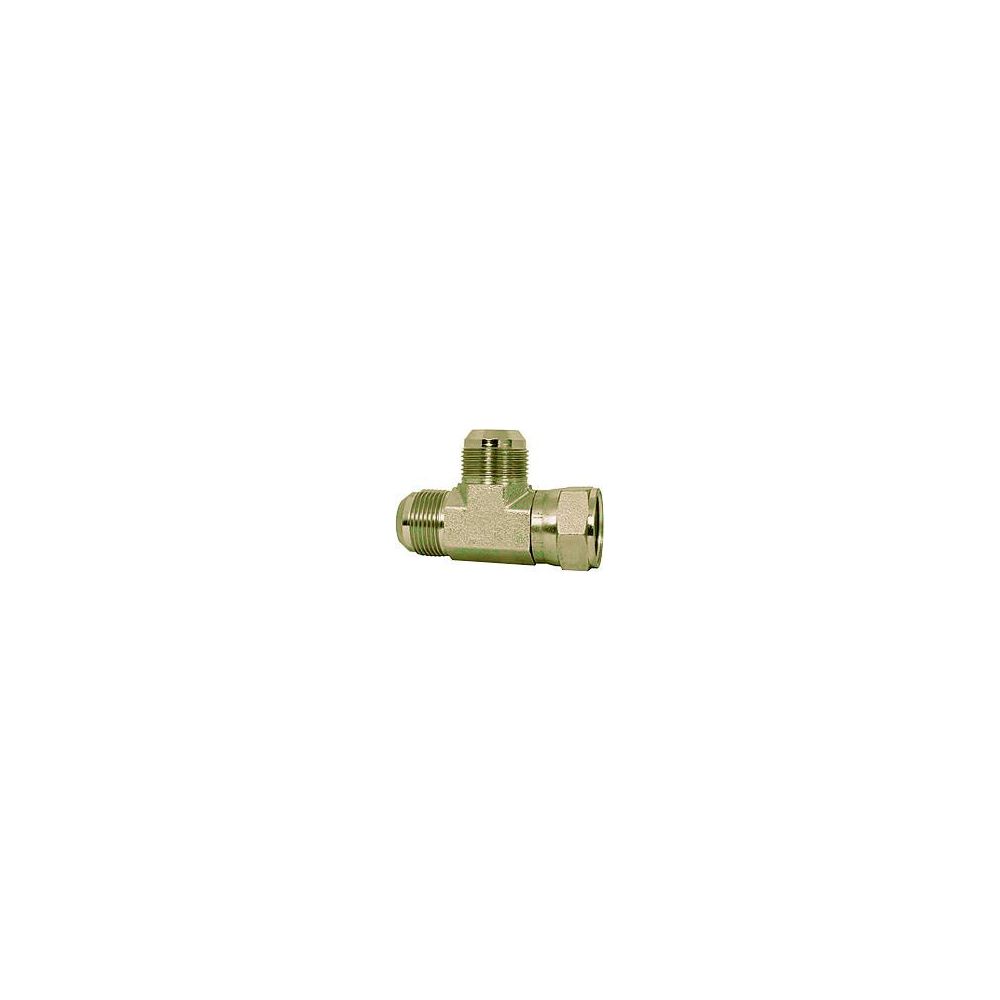

JIC Swivel Nut Tee 3/8" x 3/8" x 3/8"
Hover over image to magnify
Technical Specifications
Basic Fitting Material
Metal
Material of Construction
Carbon Steel
Basic Fitting Shape
Tee
Mfr. Part Number
97232
Body Material
Carbon Steel
Package Quantity
2
Brand
APPROVED SUPPLIER
Shape
Swivel Nut Run Tee
DOT Approved
No
Shipping Weight
0.28 lb.
Finish
Trivalent Zinc Plated
System of Measurement
Fractional
Fitting Style
MJIC X FJICX X MJIC
Temperature Range (Deg. F)
-65 to +400 deg. F
Fitting Thread Style
SAE
Thread Size
9/16"-18
Fitting Type
Flare Fitting
Tube Flare
37 deg.
Grade
1045
Tube Outside Diameter
.56
Heat Treated
No
Vibration Resistance
Good
Item
Run Tee
Working Pressure
4000
Material
Carbon Steel
Product Description
Sae 37° (Jic) Steel Swivel Nut Run Tee Fitting
- Working Pressure Up To 10,000 Psi, Depending On Tube And Fitting Size.
- Used With Copper, Brass, Steel, Aluminum, And Other Tubing That Can Be Flared.
- Applications Include Medium And High Pressure Lines On Heavy Construction, Agricultural, And Transportation Equipment.
- Meets Or Exceeds Asa, Asme, Sae, And Ms Specifications.
- Good Resistance To Vibration. Use Two Or Three Piece Nut Design Where Greater Vibration Resistance Is Required.
- Tube Outside Diameter: 3/8
- Thread Size: 9/16-18
- Cross Reference: C5706 X 6
- Assembly Instructions:
- Slide Nut On Tubing. Threaded End Of Nut Must Face Out.
- Slide Sleeve On Tubing (3-Piece Assembly). Collar End Of Sleeve Must Face Out.
- Flare Tubing And Check Flare Diameter. Examine For Excessive Thin-Out. On Thin Wall Tubing, Use Double Flare To Prevent Pinch-Off.
- Assemble Tubing To Fitting Body. Tube Nut Should Be Turned Hand Tight.
- Tighten Assembly With A Wrench. 2-Piece Nut Assembly 3-Piece Nut Assembly
Item Barcode
37° Jic Swl Nut Tee 3/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | C5706X6 | STEEL FIT C5706X6 |
 | UNSPSC CODES | 40183101 | STEEL FIT C5706X6 |
 | VMRS (ATA) CODES | 053-008-004 | STEEL FIT C5706X6 |
