NPSM Female Swivel Tee 3/4 in. x 3/4 in. x 3/4 in.

Hover over image to magnify

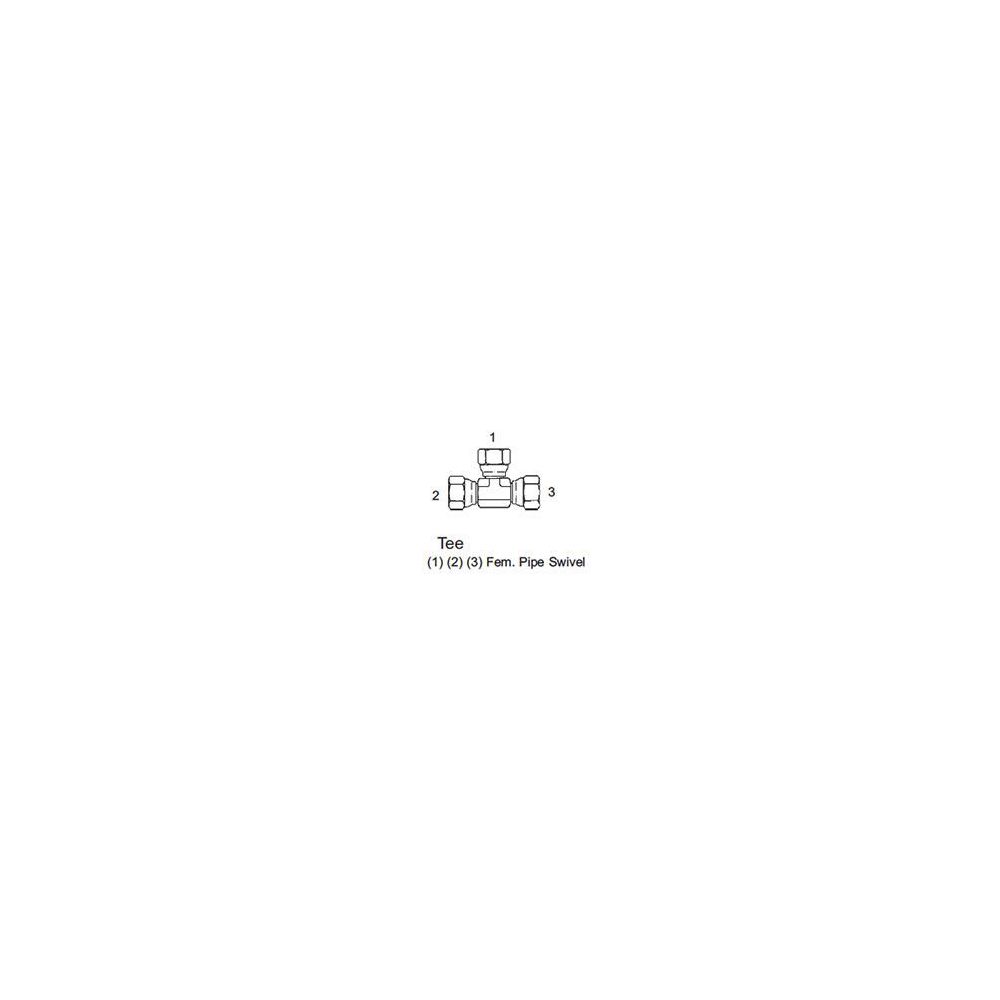

Swivel Adapter Tee 3/4X3/4X3/4
Swivel Adapter Tee 3/4X3/4X3/4
Double tap image to magnify
Swivel Adapter Tee 3/4X3/4X3/4
Swivel Adapter Tee 3/4X3/4X3/4

#96809Pkg Qty: 1

Estimated business days to ship: 16

Shipping to 43085
|

Technical Specifications

Body Hex Size
1-1/4 in.
Fitting Material
Carbon Steel
Brand
APPROVED SUPPLIER
Fitting Shape
Tee
Eaton/Aeroquip Cross
2255-12-12-12S
Fitting Style
NPSW Swivel Tee
Fitting Connection (A) Gender
Female
Mfr. Part Number
96809
Fitting Connection (A) Style
NPSM
Nut Hex Size
1-1/16
Fitting Connection (B) Gender
Female
Operating Pressure
2200
Fitting Connection (B) Pipe Size
3/4 in.
Package Quantity
1
Fitting Connection (B) Pipe Thread Size
3/4-14 in.
Pressure Connection Cross
1603-12-12-12-4
Fitting Connection (B) Style
NPSM
System of Measurement
Fractional
Fitting Connection (C) Gender
Female
Vibration Resistance
Good
Fitting Connection (C) Style
NPSM
Weatherhead Cross
C9705X12X12X12
Fitting Finish
Zinc; Clear Trivalent Chromate

Product Description

Typical Applications: • Medium pressure hydraulics used on construction, agricultural, and transportation equipment. • Power Stering and Air Brake systems.
• Imperial pipe fittings are made to NPTF (National Pipe Thread Fuel) specifications. • It NPSM swivel seal is between the nose of the swivel and the mating seat of the NPT pipe thread.

Item Barcode

0968090
Swivel Adapter Tee 3/4X3/4X3/4
