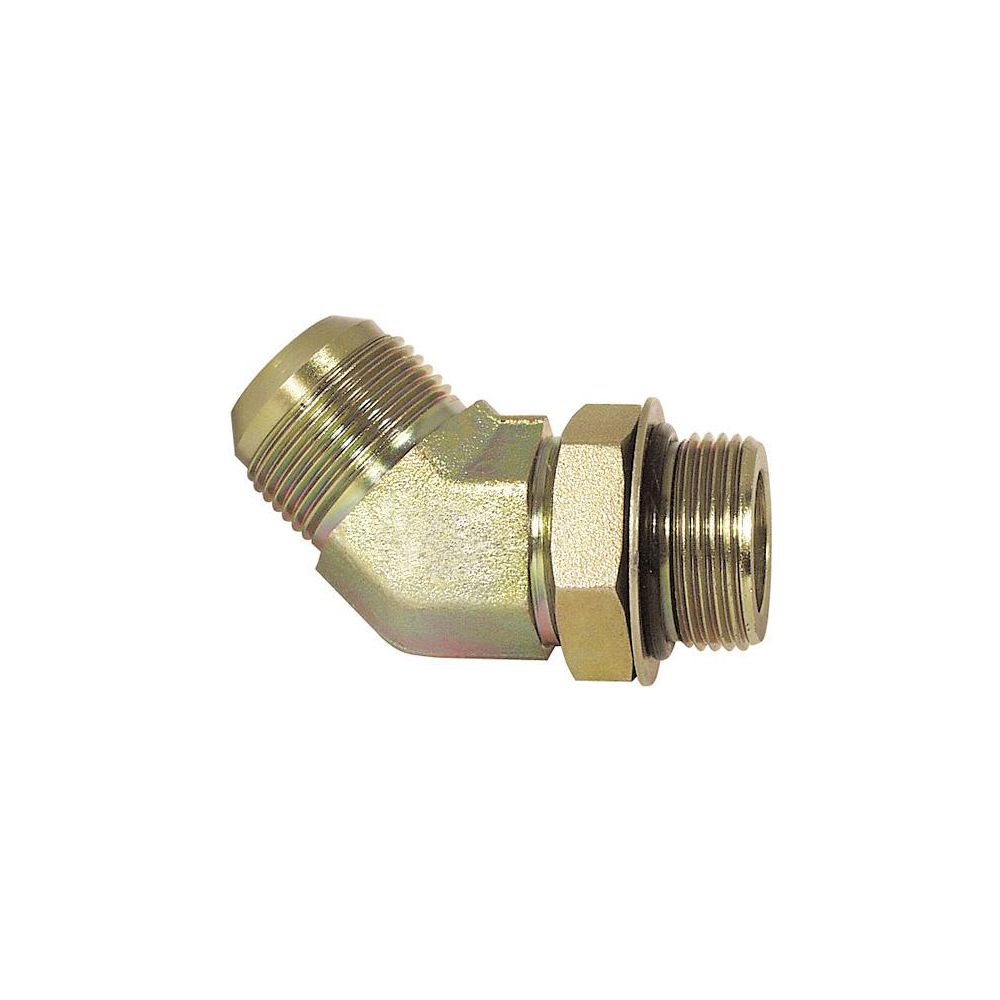

Male JIC to Straight Thread Boss O-Ring 45° Elbow 3/8 in. x 1/2 in.

Hover over image to magnify
Jic O-Ring 45° Elb 3/8X1/2
Jic O-Ring 45° Elb 3/8X1/2
Double tap image to magnify
Jic O-Ring 45° Elb 3/8X1/2
Jic O-Ring 45° Elb 3/8X1/2

#96710Pkg Qty: 2

In Stock

Shipping to 43085
|
Catalog: F21

Technical Specifications

Brand
APPROVED SUPPLIER
Fitting Style
JIC Male
Eaton/Aeroquip Cross
2061-8-6S
Includes O-Ring
Yes
Fitting Connection (A) Gender
Male
Mfr. Part Number
96710
Fitting Connection (A) Style
JIC/ 37°
O-Ring Durometer
90
Fitting Connection (A) Tube Size
3/8 in.
Operating Pressure
6000
Fitting Connection (A) Tube Thread Size
9/16"-18
Package Quantity
2
Fitting Connection (B) Gender
Male
Pressure Connection Cross
6802-06-08-4
Fitting Connection (B) Port Size
1/2 in.
Replacement Seal
97508
Fitting Connection (B) Port Thread Size
9/16"-18 in.
Shipping Weight
.7 lb.
Fitting Connection (B) Style
Straight Thread Boss O-Ring
System of Measurement
Fractional
Fitting Finish
Zinc; Clear Trivalent Chromate
Vibration Resistance
Excellent
Fitting Material
Carbon Steel
Weatherhead Cross
C5365x6x8
Fitting Shape
45°

Product Description

Typical Applications:

  • High Pressure Hydraulic, Pneumatic, and Chemical Processing.
  • O-ring sealing provides a more reliable connection seal.
  • Fitting style also known as ORB, ASE Boss O-ring, Boss O-ring, SAE-ORB, and O-ring Boss fittings.
  • JIC fittings can be used with with steel, copper, and aluminum flared tubing.
  • JIC fittings are also known as 37° flared fittings.
  • Good vibration resistance when used with two- and three-piece nuts.

Item Barcode

0967100
Jic O-Ring 45° Elb 3/8X1/2
