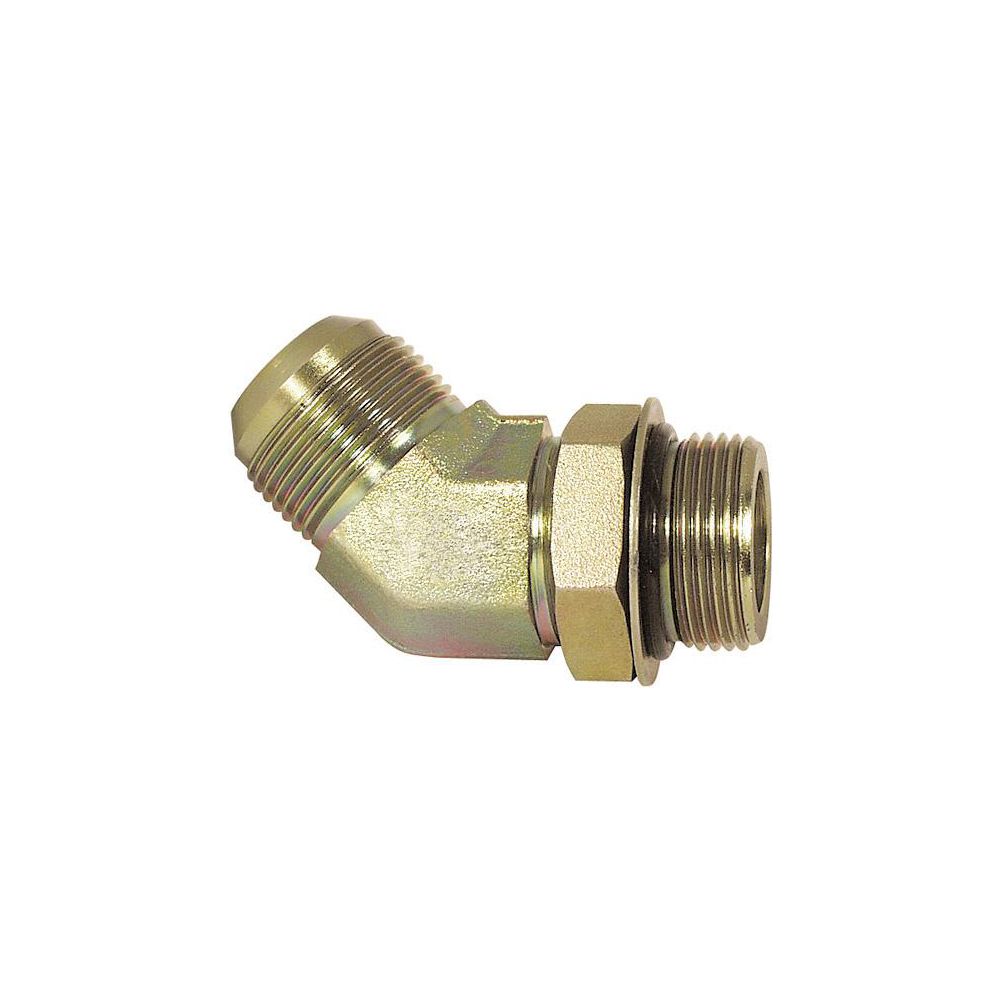

Male JIC to Straight Thread Boss O-Ring 45° Elbow 3/4 in. x 1 in.

Name: Male JIC to Straight Thread Boss O-Ring 45° Elbow 3/4 in. x 1 in.
Brand: APPROVED SUPPLIER
SKU: 0967090
Availability: InStock

Hover over image to magnify

#96709 | Pkg Qty: 1

In Stock

Shipping to 43085

Catalog: F21

Technical Specifications

Brand

APPROVED SUPPLIER

Fitting Style

JIC Male

Eaton/Aeroquip Cross

2061-16-12S

Includes O-Ring

Yes

Fitting Connection (A) Gender

Male

Mfr. Part Number

96709

Fitting Connection (A) Style

JIC/ 37°

O-Ring Durometer

Fitting Connection (A) Tube Size

3/4 in.

Operating Pressure

4000

Fitting Connection (A) Tube Thread Size

1-1/16"-12

Package Quantity

Fitting Connection (B) Gender

Male

Pressure Connection Cross

6802-12-16-4

Fitting Connection (B) Port Size

1 in.

Replacement Seal

97516

Fitting Connection (B) Port Thread Size

1-5/16"-12 in.

Shipping Weight

.35 lb.

Fitting Connection (B) Style

Straight Thread Boss O-Ring

System of Measurement

Fractional

Fitting Finish

Zinc; Clear Trivalent Chromate

Vibration Resistance

Excellent

Fitting Material

Carbon Steel

Weatherhead Cross

C5365x12x16

Fitting Shape

45°

Product Description

Typical Applications:

High Pressure Hydraulic, Pneumatic, and Chemical Processing.
O-ring sealing provides a more reliable connection seal.
Fitting style also known as ORB, ASE Boss O-ring, Boss O-ring, SAE-ORB, and O-ring Boss fittings.
JIC fittings can be used with with steel, copper, and aluminum flared tubing.
JIC fittings are also known as 37° flared fittings.
Good vibration resistance when used with two- and three-piece nuts.
