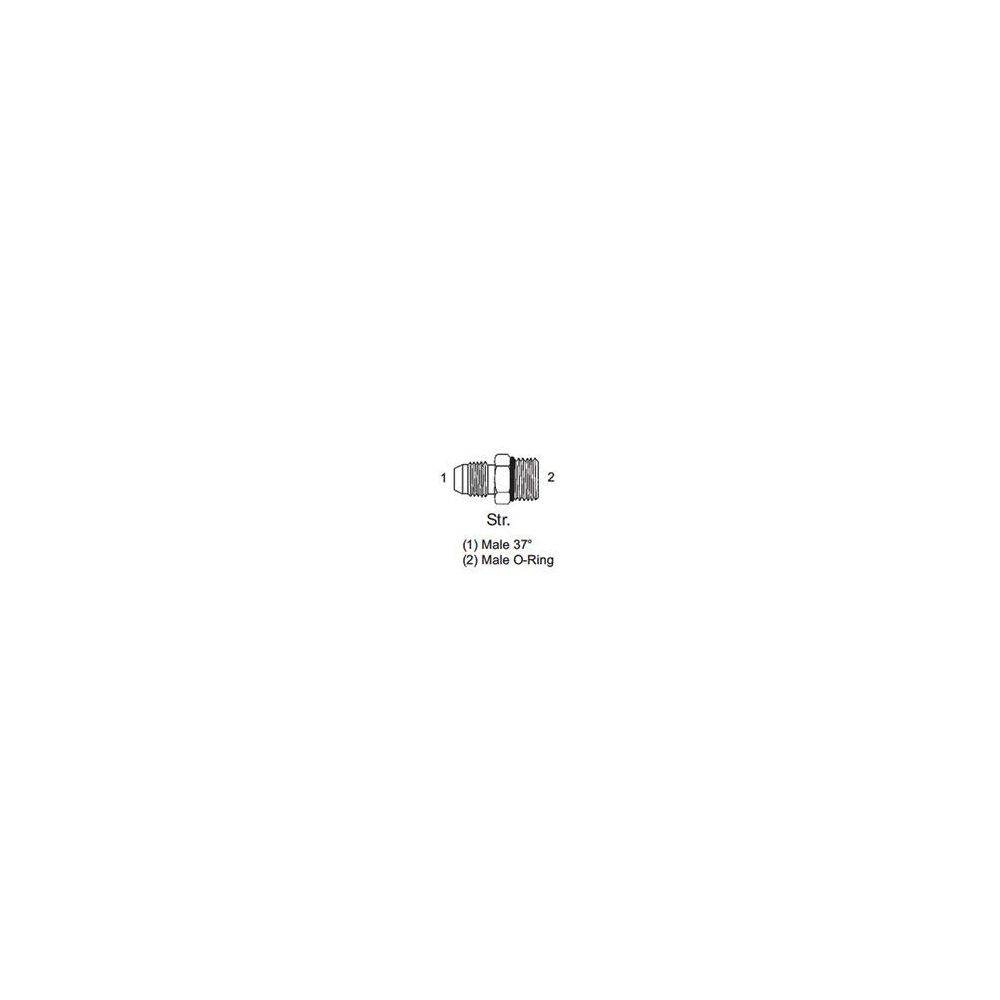

Male JIC (37°ORF) to Male Straight Thread Boss O-Ring (ORB) Strainght 1 in. x 5/8 in.

Hover over image to magnify
Jic O-Ring Ml Conn 1X5/8
Jic O-Ring Ml Conn 1X5/8
Double tap image to magnify
Jic O-Ring Ml Conn 1X5/8
Jic O-Ring Ml Conn 1X5/8

#96549Pkg Qty: 1

$30.86 pkg | $30.86 ea

In Stock

Shipping to 43085
|

Technical Specifications

Brand
APPROVED SUPPLIER
Fitting Shape
Straight
Connector Type
O-Ring Connector
Fitting Style
Straight Male Connector
Eaton/Aeroquip Cross
202702-10-16S
Includes O-Ring
Yes
Fitting Connection (A) Gender
Male
Mfr. Part Number
96549
Fitting Connection (A) Style
JIC (37°)
O-Ring Durometer
90
Fitting Connection (A) Tube Size
1 in.
Operating Pressure
4500
Fitting Connection (A) Tube Thread Size
1-5/16"-12
Package Quantity
1
Fitting Connection (B) Gender
Male
Pressure Connection Cross
6400-16-10
Fitting Connection (B) Port Size
5/8 in.
Replacement Seal
97510
Fitting Connection (B) Port Thread Size
7/8"-14 in.
Shipping Weight
.12 lb.
Fitting Connection (B) Style
Straight Thread Boss O-Ring (ORB)
System of Measurement
Fractional
Fitting Finish
Zinc; Clear Trivalent Chromate
Vibration Resistance
Good
Fitting Material
Carbon Steel
Weatherhead Cross
C5315x16x10

Product Description

  • Typical Applications:
  • High Pressure Hydraulic, Pneumatic, and Chemical Processing.
  • O-ring sealing provides a more reliable connection seal.
  • Fitting style also known as ORB, ASE Boss O-ring, Boss O-ring, SAE-ORB, and O-ring Boss fittings.
  • JIC fittings are also known as 37° flared fittings.

Item Barcode

0965490
Jic O-Ring Ml Conn 1X5/8
