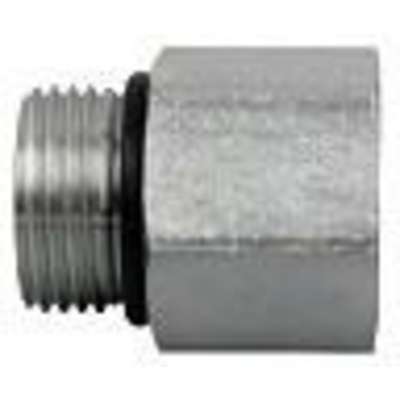

Male Boss O-ring (ORB) to Female Pipe 1-1/4 in. x 1 in.
Hover over image to magnify
Technical Specifications
Body Hex Size
1-7/8 in.
Fitting Material
Carbon Steel
Brand
APPROVED SUPPLIER
Fitting Shape
Straight
Eaton/Aeroquip Cross
2216-16-20S
Fitting Style
Boss (ORB) to NPT
Fitting Connection (A) Gender
Male
Mfr. Part Number
96341
Fitting Connection (A) Port Size
1-1/4 in.
Operating Pressure
3000
Fitting Connection (A) Port Thread Size
1-5/8-12 in.
Package Quantity
1
Fitting Connection (A) Style
Boss Oring (ORB)
Pressure Connection Cross
6405-20-16
Fitting Connection (B) Gender
Female
Shipping Weight
0.35 lb.
Fitting Connection (B) Pipe Size
1 in.
System of Measurement
Fractional
Fitting Connection (B) Pipe Thread Size
1-11 1/2 in.
Vibration Resistance
Good
Fitting Connection (B) Style
NPT Pipe
Weatherhead Cross
C3269X20X16
Fitting Finish
Zinc; Clear Trivalent Chromate
Product Description
Typical Applications:
- High Pressure Hydraulic, Pneumatic, and Chemical Processing.
- O-ring sealing provides a more reliable connection seal than other connections.
- Fitting style also known as ORB, ASE Boss O-ring, Boss O-ring, SAE-ORB, and O-ring Boss fittings.
- Imperial pipe fittings are made to NPTF (National Pipe Thread Fuel) specifications. It is recommended to always use thread sealant.
Item Barcode
O-Ring Adp 1-1/4"X1"
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | C3269X20X16 | STEEL FIT C3269X20X16 |
 | UNSPSC CODES | 40183101 | |
 | VMRS (ATA) CODES | 053-008-004 | STEEL FIT C3269X20X16 |
