GATES

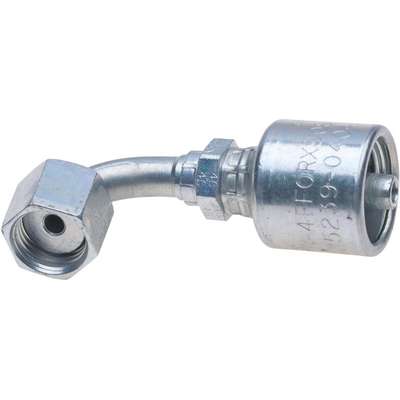

Gates Mega Crimp 4G-8Fforx90S Femal Flat Face Swvl

Hover over image to magnify
Gates Femal Flat 4G-8FFORX90S
Gates Femal Flat 4G-8FFORX90S
Double tap image to magnify
Gates Femal Flat 4G-8FFORX90S
Gates Femal Flat 4G-8FFORX90S

#94597Pkg Qty: 1

In Stock

Shipping to 43085
|

Technical Specifications

Angle
90 deg.
Mfr. Part Number
G25239-0408
Brand
GATES
Package Quantity
1
Connection Type
Female
Series
Megacrimp
Finish
TuffCoat Plating
Shape
90 deg. Elbow
Fitting Style
Swivel
Shipping Weight
0.27 lb.
Fitting Type
Short Drop
Swivel Nut Hex Size
24 mm
Hose Cutoff Factor
1.81 in.
System of Measurement
Fractional
Hose Inside Diameter
1/4 in.
Thread Size
13/16"-16
Item
Crimp Hose End
Tube Size
1/4 in.
Material
Steel

Product Description

Gates Hose End
  • Gates Megacrimp 4G-8Fforx90S
  • Female Flat-Face O-Ring Swivel 90° Bent Tube.
  • Cutoff: 1.81" (46mm)
  • Nut Hex: 24mm
  • Hose I.D.: 1/4" (6.4mm)
  • Length: 2.83" (72mm)
  • Drop: 1.14" (29mm)
  • Thread: 13/16"-16
  • Robust "Bite-The-Wire" Crimp.
  • Low Profile.
  • Full-Stem Insertion.
  • Full-Length Crimp.
  • Industry-Leading Tested 3X SAE Standard Impulse Cycles.
  • Environmentally Friendly Tuffcoat Plating For 700% Better Corrosion Resistance.

Item Barcode

0945970
Gates Femal Flat 4G-8FFORX90S
