GATES

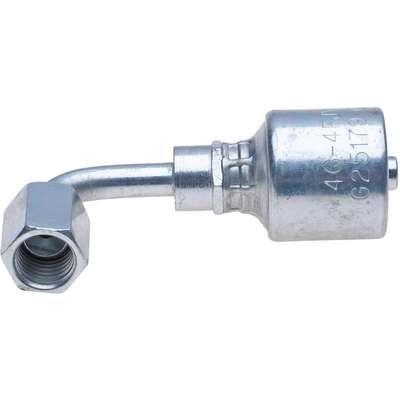

Gates Mega Crimp 16G-20Fjx90S 90 deg. Short Elbow
Hover over image to magnify
Technical Specifications
Angle
90 deg.
Mfr. Part Number
G25179-1620
Brand
GATES
Package Quantity
1
Connection Type
Female
Series
Megacrimp
Finish
TuffCoat Plating
Shipping Weight
1.95 lb.
Fitting Style
Swivel
Swivel Nut Hex Size
50 mm
Hose Cutoff Factor
3.94 in.
System of Measurement
Fractional
Hose Inside Diameter
1 in.
Thread Size
1-5/8"-12
Item
Crimp Hose End
Tube Flare
37 deg.
Material
Carbon Steel
Tube Size
1 in.
Product Description
Gates Hose End
- Gates Megacrimp 16G-20Fjx90S
- Female JIC 37° Flare Swivel 90° Bent Tube.
- Cutoff: 3.94" (100.2mm)
- Nut Hex: 50mm
- Hose I.D.: 1" (25.4mm)
- Length: 6.18" (64mm)
- Drop: 2.52" (64mm)
- Thread: 1-5/8"-12
- Robust "Bite-The-Wire" Crimp.
- Low Profile.
- Full-Stem Insertion.
- Full-Length Crimp.
- Industry-Leading Tested 3X SAE Standard Impulse Cycles.
- Environmentally Friendly Tuffcoat Plating For 700% Better Corrosion Resistance.
Item Barcode
Gates Female Jic 16G-20FJX90S
| Name | Item | Description | |
|---|---|---|---|
 | Gates Rubber Company | 16G-20FJX90S | GATES MEGA 16G-20FJX90S |
| Gates Rubber Company | G25179-1620 | GATES MEGA 16G-20FJX90S |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | GATES MEGA 16G-20FJX90S |
