DANFOSS

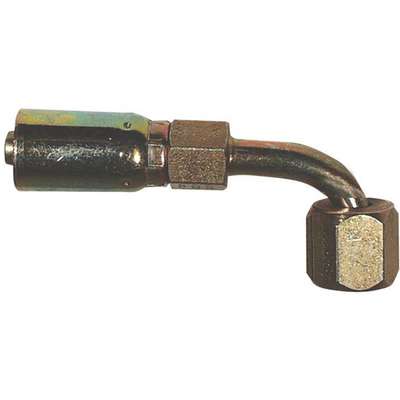

Danfoss Coll-O-Crimp E-Series JIC 37 Degree Female Swivel 90 Degree Tube Elbow

Hover over image to magnify
Crimp"E" 90'EL 1/4X1/4
Crimp"E" 90'EL 1/4X1/4

#93690 | Pkg Qty: 5

Not currently available. Call your service advisor for availability.

Shipping to 43085
|

Technical Specifications

Angle
90 deg.
Mfr. Part Number
04E-664
Brand
DANFOSS
Package Quantity
5
Connection Type
Female
Series
Coll-O-Crimp E-Series
Finish
Zinc; Clear Trivalent Chromate
Shape
Tube Elbow
Fitting Style
Swivel
Shipping Weight
0.43 lb.
Hex Size
7/16 in.
Swivel Nut Hex Size
9/16 in.
Hose Cutoff Factor
1.44 in.
System of Measurement
Fractional
Hose End Style
JIC
Thread Size
7/16"-20
Hose Inside Diameter
1/4 in.
Tube Flare
37 deg.
Item
Crimp Hose End
Tube Size
1/4 in.
Material
Low Carbon Steel
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser

Product Description

Coll-O-Crimp® E-Series Hose End
  • SAE 37° (Jic) Female Swivel 90° Tube Elbow.
  • For General Purpose, Low, And Medium Pressure Hydraulics.
  • For Use With (1) One Braid Hose.
  • Universal, Works On Either SAE 45° Or JIC 37° Flare Connections.
  • Material: Aisi/Sae 12L14 Carbon Steel
  • Plating: Zinc; Yellow Finish
  • Hose Inside Diameter: 1/4
  • Tube Size: 1/4
  • Thread Size: 7/16-20
  • Cross Reference: 04E-664
  • For Use With H009, H209, H243, H265, H275, H285, H435 , And H436 Hose.
  • Note: Special E-Series Collet Is Required For This Hose End.
