DANFOSS

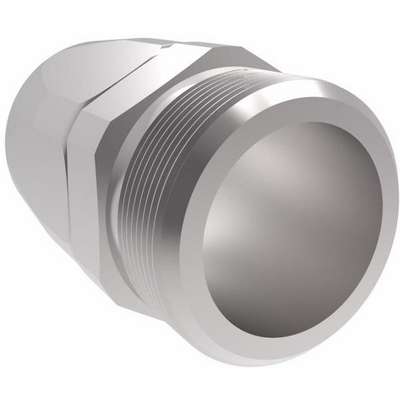

Coll-O-Crimp E-Series Male Pipe Rigid, Low Carbon Steel, 3/16"
Hover over image to magnify
Technical Specifications
Brand
DANFOSS
Mfr. Part Number
03E-102
Connection Type
Male
Package Quantity
1
Finish
Zinc; Clear Trivalent Chromate
Series
Coll-O-Crimp E-Series
Fitting Style
Rigid
Shape
Pipe
For Pipe Size
1/8 in.
Shipping Weight
0.05 lb.
Hex Size
7/16 in.
System of Measurement
Fractional
Hose Cutoff Factor
3/4 in.
Thread Size
1/8"-27
Hose Inside Diameter
3/16 in.
Tube Size
1/8 in.
Item
Crimp Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Material
Low Carbon Steel
Product Description
- Male Pipe Rigid Hose End.
- For general purpose, low, and medium pressure hydraulics.
- For use with (1) one braid hose.
- Material: AISI/SAE 12L14 carbon steel
- Cross Reference: 03E-102
- For use with H009, h209, h243, h265, h275, h285, H435, and H436 hose.
- NOTE: Special E-Series collet is required for this hose end.
Item Barcode
Crimp "E" Ml 3/16X1/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 03E-102 | CRIMP END 03E-102 |
 | UNSPSC CODES | 27121700 | |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 03E-102 |
