DANFOSS

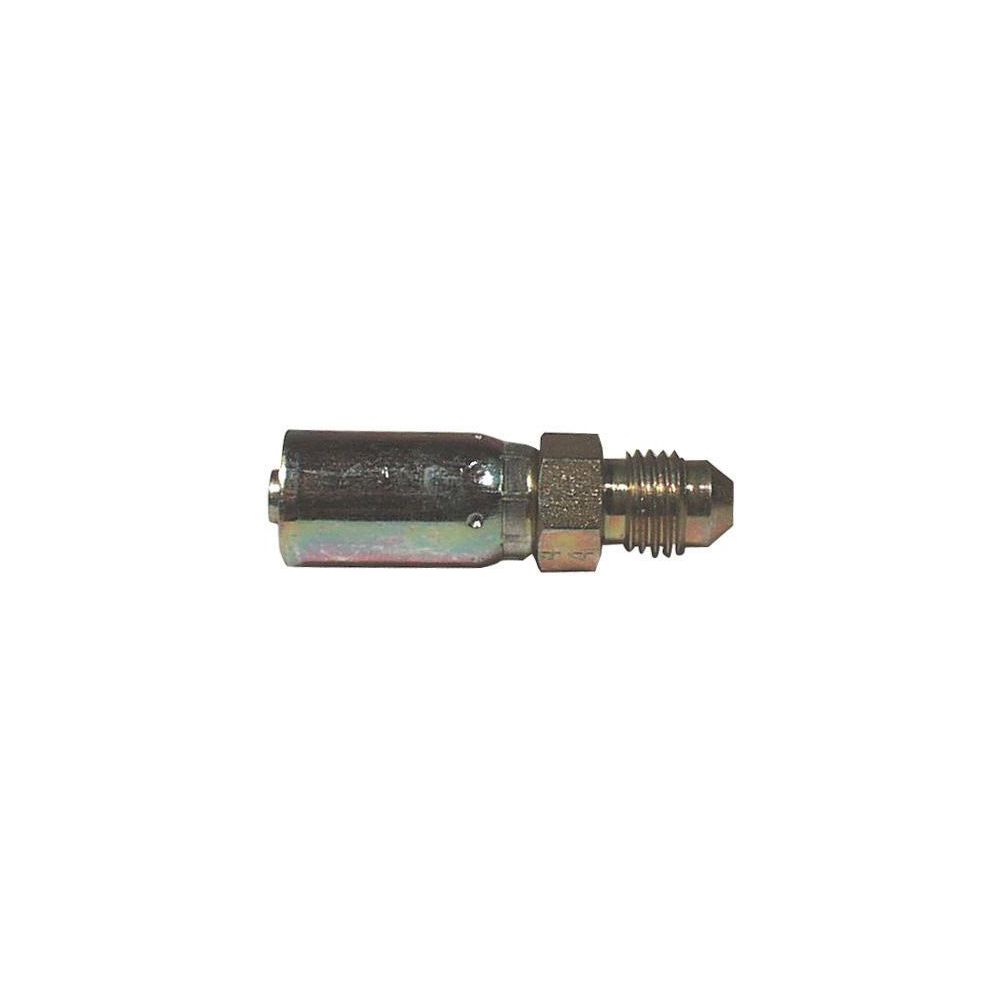

Danfoss Coll-O-Crimp E-Series, SAE 37 Degree JIC Male Rigid, Low Carbon Steel, 3/8" x 3/8"
Hover over image to magnify
Technical Specifications
Brand
DANFOSS
Material
Low Carbon Steel
Connection Type
Male
Mfr. Part Number
06E-506
Finish
Zinc; Clear Trivalent Chromate
Package Quantity
5
Fitting Thread Style
SAE
Series
Coll-O-Crimp E-Series
Fitting Type
Rigid
Shipping Weight
0.47 lb.
Hex Size
5/8 in.
System of Measurement
Fractional
Hose Cutoff Factor
1 in.
Thread Size
9/16"-18
Hose End Style
JIC
Tube Flare
37 deg.
Hose Inside Diameter
3/8 in.
Tube Size
3/8 in.
Item
Crimp Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Product Description
E-Series SAE 37° Male Rigid Hose End
- For General Purpose, Low, And Medium Pressure Hydraulics.
- For Use With (1) One Braid Hose.
- Material: Aisi/Sae 12L14 Carbon Steel
- Plating: Zinc; Yellow Finish
- Hose Inside Diameter: 3/8
- Tube Size: 3/8
- Thread Size: 9/16-18
- Cross Reference: 06E-506
- For Use With H009, H209, H243, H265, H275, H285, H435 , And H436 Hose.
- Note: Special E-Series Collet Is Required For This Hose End.
Item Barcode
Crimp"E" Ml Jic 3/8X3/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 06E-506 | CRIMP END 06E-506 |
 | Grainger Dropship | 20JU99 | CRIMP END 06E-506 |
 | UNSPSC CODES | 27121700 | CRIMP END 06E-506 |
 | VMRS (ATA) CODES | 053-008-004 | CRIMP END 06E-506 |
