919-5 Ptfe Hose With S/S Wire Braid
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Minimum Burst Pressure
12000 psi
Cover Material
304 Stainless Steel
Package Quantity
25
Hose Inside Diameter
1/4 in.
Reinforcement Material
305 Stainless Steel Wire Braid
Hose Outside Diameter
3/8 in.
Shipping Weight
2.95 lb.
Inner Tube Material
Natural FDA Compliant PTFE
System of Measurement
Fractional
Item
PTFE Hose
Temperature Range (Deg. F)
-100 to +450 deg. F
Mfr. Part Number
93451
Working Pressure
3,000 psi
Minimum Bend Radius
3 in.
Product Description

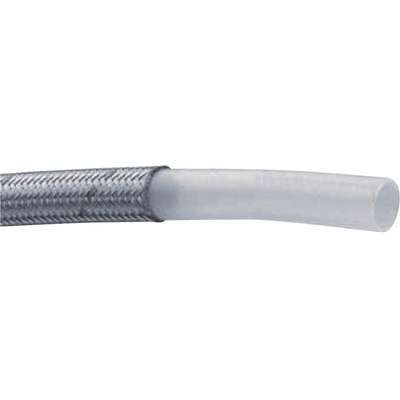

919 Series PTFE Hose
- Bulk PTFE Hose With 304 Stainless Steel Wire Braid.
- Construction Meets Or Exceeds All Requirements Of SAE 100R14 Inner Tube Or Extruded PTFE With Stainless Steel Wire Braid Outer Cover.
- Temperature Range: -100° F To 450° F (-73° C To 232° C)
- Steam Service: Maximum For Steam Is 200 PSI At 388° F
- Vacuum Service: 28" Of Hg Sizes -4 Through -10, 12" Of Hg Size -12
- Hose Inside Diameter: 1/4
- Hose Outside Diameter: 3/8
- Maximum Working Pressure At 75° F: 3,000 PSI
- Minimum Burst Pressure: 12,000 PSI
- Minimum Bend Radius: 3.0
- Applications: Transfer Lines, Hot Oils, Compressed Air/Gases, Adhesive Dispensing, Coolant Lines And Medical Gases.
- Cross Reference: 919-5
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
919-5 PTFE Hose 1/4 Id
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | H24304 | MED PRES HO 919-5 |
 | UNSPSC CODES | 27121700 | MED PRES HO 919-5 |
 | VMRS (ATA) CODES | 053-008-003 | MED PRES HO 919-5 |
