APPROVED SUPPLIER

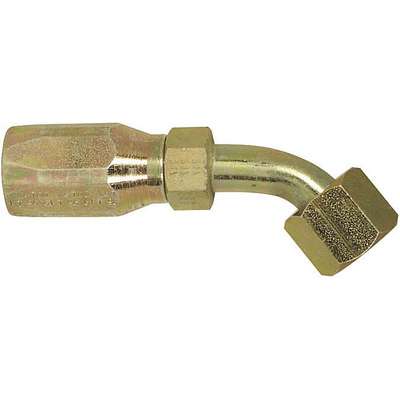

24708N 688 Hose End Medium
Hover over image to magnify
Technical Specifications
Angle
45 deg.
Mfr. Part Number
92245
Brand
APPROVED SUPPLIER
Package Quantity
5
Connection Type
Female
Series
250 N
Finish
Zinc Yellow
Shape
Tube Elbow
Fitting Style
Swivel
Shipping Weight
1.7 lb.
Grade
12L14
System of Measurement
Fractional
Hose Cutoff Factor
1.84 in.
Thread Size
3/4"-16
Hose End Style
JIC
Tube Flare
37 deg.
Hose Hex Size
15/16 in.
Tube Size
1/2 in.
Hose Inside Diameter
13/32 in.
Tube/Pipe Hex Size
7/8 in.
Item
Field Attachable Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Material
Carbon Steel
Product Description
Field Attachable 247 N Series Hose End
- 247 N Field Attachable Hose End.
- JIC 37° Female Swivel 45° Tube Elbow.
- Made Of Aisi/Sae 12L14 Carbon Steel.
- Zinc; Yellow Finish.
- Hose Inside Diameter: 13/32
- Tube Size: 1/2
- Thread Size: 3/4-16
- Cut-Off Factor: 2-1/4
- Applications: Medium Pressure And High Temperature Hose Lines.
- Cross Reference: 24708N-688
- Universal, Works On Either Sae 45° Or JIC 37° Flare Connections.
- For Use With: H059, H069, H166, H169, H229, H353H, H366 & H569 Hose. Do not use with the H213 hose series
Item Barcode
Med Fml Swvl 45' Elb 13/32X1/2
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 24708N-688 | HOSE END MED 24708N-688 |
 | UNSPSC CODES | 27121700 | HOSE END MED 24708N-688 |
 | VMRS (ATA) CODES | 053-008-004 | HOSE END MED 24708N-688 |
