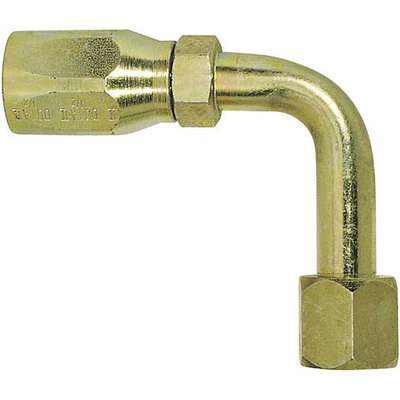

24708N-648 Hose End Medium Long Drop
Hover over image to magnify
Technical Specifications
Angle
90 deg.
Mfr. Part Number
92205
Brand
APPROVED SUPPLIER
Package Quantity
5
Connection Type
Female
Series
247 N
Finish
Zinc Yellow
Shape
Tube Elbow
Fitting Style
JIC
Shipping Weight
1.81 lb.
Fitting Type
Swivel
System of Measurement
Fractional
Grade
12L14
Thread Size
3/4"-16
Hose Cutoff Factor
2-3/16 in.
Tube Flare
37 deg.
Hose Inside Diameter
13/32 in.
Tube Size
1/2 in.
Item
Field Attachable Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Material
Carbon Steel
Product Description
90° Elbow 13/32 X 1/2
- Reusable Female Swivel 90° Tube Elbow Long Drop Hose End For H069 Medium Pressure Hose.
- Made Of Aisi/Sae 12L14 Carbon Steel.
- Zinc; Yellow Finish.
- Hose Inside Diameter: 13/32
- Tube Size: 1/2
- Thread Size: 3/4-16
- Cut-Off Factor: 2-3/16
- Applications: Medium Pressure And High Temperature Hose Lines.
- Cross Reference: 24708N-64
- Universal, Works On Either Sae 45° Or Jic 37° Flare Connections.
- For Use With: H059, H069, H166, H169, H229, H353H, H366 & H569 Hose. Do not use with the H213 hose series
Item Barcode
90'ELBOW 13/32 X 1/2
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 24708N-648 | HOSE END MED 24708N-648 |
 | UNSPSC CODES | 27121700 | HOSE END MED 24708N-648 |
 | VMRS (ATA) CODES | 053-008-004 | HOSE END MED 24708N-648 |
