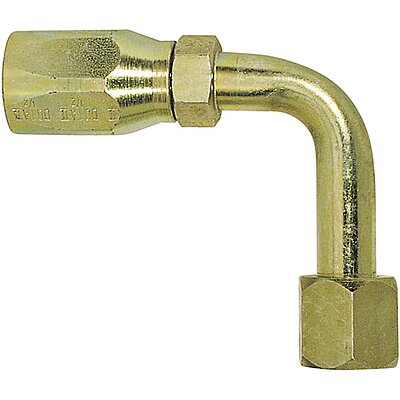

24704N-644 Hose End Medium Long Drop
Hover over image to magnify
Technical Specifications
Angle
90 deg.
Mfr. Part Number
92202
Brand
APPROVED SUPPLIER
Package Quantity
1
Connection Type
Female
Series
247 N
Finish
Zinc Yellow
Shape
Tube Elbow
Fitting Style
JIC
Shipping Weight
0.1 lb.
Fitting Type
Swivel
System of Measurement
Fractional
Grade
12L14
Thread Size
7/16"-20
Hose Cutoff Factor
1-11/16 in.
Tube Flare
37 deg.
Hose Inside Diameter
3/16 in.
Tube Size
1/4 in.
Item
Field Attachable Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Material
Carbon Steel
Product Description
Reusable Hose Ends For H069
- Female Swivel 90° Tube Elbow Long Drop - 37° SAE
- Made Of Aisi/Sae 12L14 Carbon Steel.
- Plating: Zinc; Yellow Finish.
- Hose Inside Diameter: 3/16
- Tube Size: 1/4
- Thread Size: 7/16-20
- Cut-Off Factor: 1-11/16
- Cross Reference: 24704N-644 1
- Universal, Works On Either SAE 45° And JIC 37° Flare Connections.
- Applications: Medium Pressure And High Temperature Hose Lines.
- For Use With: H059, H069, H166, H169, H229, H353H, H366 & H569 Hose. Do not use with the H213 hose series
Item Barcode
90'ELBOW 3/16 X 1/4
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 24704N-644 | HOSE END MED 24704N-644 |
 | UNSPSC CODES | 27121700 | HOSE END MED 24706N-646 |
 | VMRS (ATA) CODES | 053-008-004 | HOSE END MED 24704N-644 |
