HALDEX

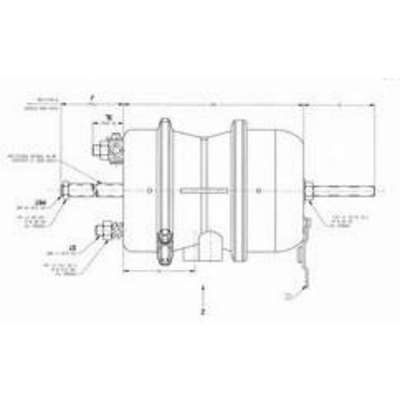

Midland MID3030LP60 Double Diaphragm Spring Brake - Long
Hover over image to magnify
Technical Specifications
Air Port Thread
3/8-18 NPTF
Pushrod Thread
5/8-18 UNF
Available Stroke
3 in.
Shipping Weight
30 lb.
Brand
HALDEX
Stud Grade
5
Item
Spring Brake
Stud Length
1-1/2 in.
Maximum Air Pressure
150 psi
Stud Spacing
4-3/4 in.
Mfr. Part Number
MID3030LP60
Stud Type
5/8-11 UNC
Package Quantity
1
Product Description
- Combination Actuator - 3030 Long Stroke
- Midland Economy Actuator for the price conscious consumer
- Maximum Air Pressure: 150 psi
- Extended life with proven reliability
- Spring chamber is permanently attached and sealed
- Oil, chemical, and water resistant diaphragms for maximum life
- High grade steel mounting studs provide maximum mounting strength
- Clevis assembly included
- Double bolted service clamp-band for adjustment and secure, positive attachment
- Black polymer coated spring and stud housing offers corrosion protection
Item Barcode
Midland Combo Ab Act 3030 Lng
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 25171700 | |
 | VMRS (ATA) CODES | 013-004-001 | COMBO AB ACT 3030 LNG STK |
