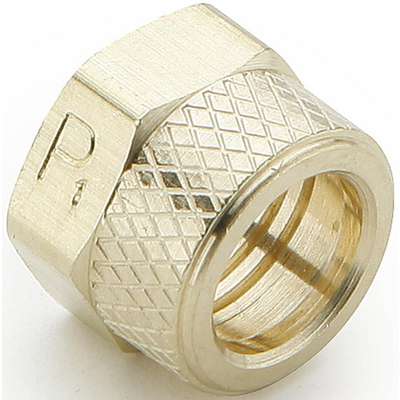

1261 X 5 Polyline Nut Brass Fitting
Hover over image to magnify
Technical Specifications
Body Grade
CA360
Package Quantity
10
Body Material
Brass
Shipping Weight
0.15 lb.
Brand
APPROVED SUPPLIER
System of Measurement
Fractional
DOT Approved
No
Thread Size
7/16"-24
Fitting Type
Compression Fitting
Tube Outside Diameter
5/16 in.
Item
Compression Fitting with Machined Insert
Vibration Resistance
Excellent
Mfr. Part Number
91313
Working Pressure
Up to 500 psi with a 4:1 safety factor depending on tubing. When using plastic tubing, use the working pressure for type used.
Product Description
Machine Insert Compression Fittings
- Easy To Assemble, No Flaring Is Necessary.
- Used With Aluminum, Copper , Or Hard Plastic Tubing (Plastic Tubing Requires A Brass Sleeve).
- Weatherhead® Pt200 And Pt240 Plastic Tubing Requires A Plastic Sleeve.
- Not Recommended For Steel Tubing, Pt230, Tp160 Or Air Brake Tubing.
- Vibration Resistance Is Excellent.
- Temperature Range Depends On Tubing Used: For Brass Sleeve: -65° F. To 250° F., For Plastic Sleeve: -40° F. To 150° F.
- Pressure: Up To 500 Psi Depending On Tube Size. When Using Plastic Tubing, Use The Working Pressure For Type Used.
- Typical Applications: Pneumatic Instrumentation Circuits, Lubrication, And Cooling Lines.
- Tube Outside Diameter: 5/16
- Thread Size: 7/16-24
- Cross Reference: 1261 X 5
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Polyline Nut 5/16 1261X5
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1261X5 | POLYLINE NUT Q 1261X5 |
 | UNSPSC CODES | 40183101 | POLYLINE NUT Q 1261X5 |
 | VMRS (ATA) CODES | 053-008-004 | POLYLINE NUT Q 1261X5 |
