Technical Specifications
Brand
APPROVED SUPPLIER
Shipping Weight
0.04 lb.
DOT Approved
No
Sleeve Material
Plastic
Fitting Type
Compression Fitting with Machined Insert
System of Measurement
Fractional
Item
Sleeve
Tube Outside Diameter
1/4 in.
Mfr. Part Number
91300
Vibration Resistance
Excellent
Package Quantity
20
Working Pressure
Up to 500 psi with a 4:1 safety factor depending on tubing. When using plastic tubing, use the working pressure for type used.
Product Description
Machine Insert Compression Fittings
- Easy To Assemble, No Flaring Is Necessary.
- Used With Aluminum, Copper , Or Hard Plastic Tubing (Plastic Tubing Requires A Brass Sleeve).
- Weatherhead® Pt200 And Pt240 Plastic Tubing Requires A Plastic Sleeve.
- Not Recommended For Use With Steel Tubing, Pt230, Tp160 Or Air Brake Tubing.
- Vibration Resistance Is Excellent.
- Temperature Range Depends On Tubing Used: For Brass Sleeve: -65° F. To 250° F., For Plastic Sleeve: -40° F. To 150° F.
- Pressure: Up To 500 Psi Depending On Tube Size. When Using Plastic Tubing, Use The Working Pressure For Type Used.
- Typical Applications: Pneumatic Instrumentation Circuits, Lubrication, And Cooling Lines.
- Use 92319 Polyethylene Thin Wall Tubing.
- Tube Outside Diameter: 1/4
- Cross Reference: 1260 X 4
Item Barcode

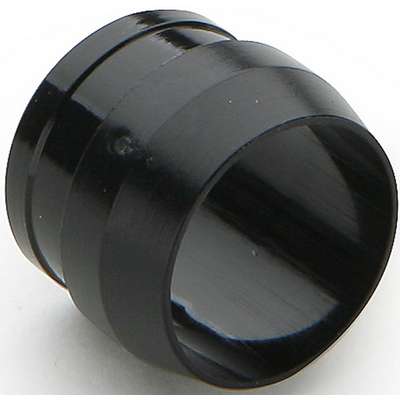

Polyline Sleeve 1/4 Plastic
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1260X4 | POLYLINE SLV 1260X4 |
 | UNSPSC CODES | 40183101 | POLYLINE SLV 1260X4 |
 | VMRS (ATA) CODES | 053-008-004 | POLYLINE SLV 1260X4 |
