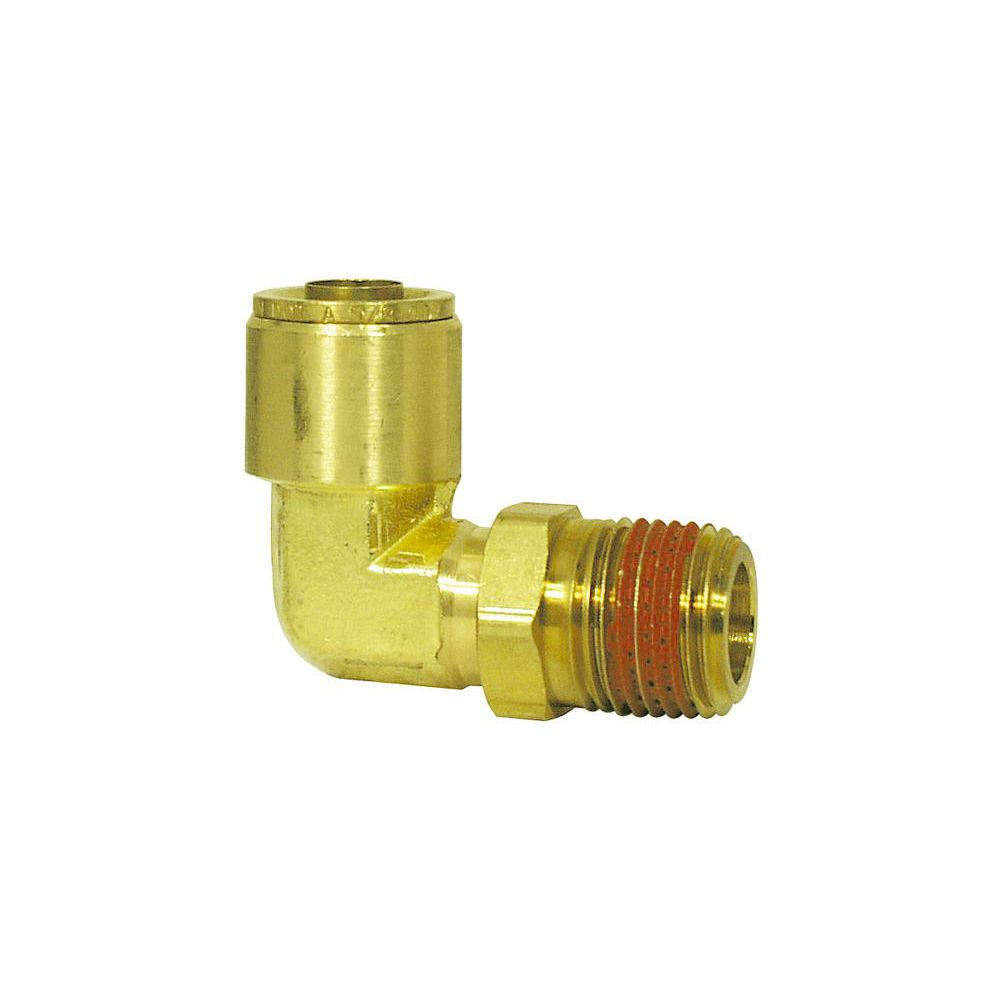

APPROVED SUPPLIERBrass, Male 90° Swivel Connector, Air Brake Push-to-Connect, 1/4 in. x 3/8 in.
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Hex Size
3/8
Brass DOT Push-to-Connect Fittings Type
Elbows
Material
Brass
Connection Type
Male
Meets Standards
D.O.T. FMVSS 571.106 and SAE J1131
DOT Approved
Yes
Mfr. Part Number
91232
Fitting Connection (A) Style
Push to Connect
Package Quantity
5
Fitting Connection (A) Tube Size
1/4
Pipe Thread
3/8 in.
Fitting Connection (B) Gender
Male
Plating
None
Fitting Connection (B) Pipe Size
3/8 in.
Shape
Elbow
Fitting Connection (B) Style
NPTF Pipe
Shipping Weight
.38 lb.
Fitting Connection (B) Thread Size
3/8-18
System of Measurement
Fractional
Fitting Material
Brass
Tube Outside Diameter
1/4 in.
Fitting Style
Male connector
Vibration Resistance
Good
Fitting Type
Push-To-Connect
Weatherhead Cross
1869x4x6S
Gasket Material
Ethylene Propylene
Working Pressure
150
Grade
CA360
Product Description
- Typical Applications:
- Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Quick Disconnect - Simply push tubing In, no tools or loose parts to handle in tight places.
- It is recommended to applied thread sealant to all pipe threads.
- Pipe threads are the most common fitting style used in the United States and Canada.
Frequently Bought Together
Currently Viewing
A/B Push 90° Ml Elb 1/4X3/8 Sw
| #91232 | Pkg Qty: 5
| #200-1 | Pkg Qty: 1
Available Assortments View All
| Assembly | Disassembly |
 |  |
| Insert tube end into fitting, sliding I.D. of the tube over insert (friction is felt as tube slides past O-Ring). Continue to push tube in until it bottoms out. | Use thumb and forefinger to disconnect tube. Hold down the top of the insert against the fitting body and pull out the tubing with the other hand. No tools needed. |
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
A/B Push 90° Ml Elb 1/4X3/8 Sw
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1869X4X6S | A/B ML ELBOW 1/4 X 3/8 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B ML ELBOW 1/4 X 3/8 |
