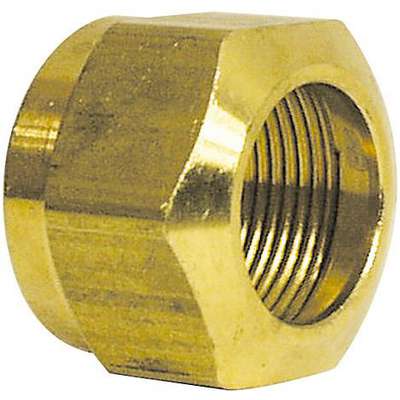

Brass Air Brake Tubing Compression Nut 5/32 in.
Hover over image to magnify
#90790 | Pkg Qty: 10
Not currently available. Call your service advisor for availability.
Shipping to 60045
Catalog: G10
Technical Specifications
Brand
APPROVED SUPPLIER
Meets Standards
SAE and DOT FMVSS 571.106
DOT Approved
No
Mfr. Part Number
90790
DOT Compression Fittings Type
Nuts
Package Quantity
10
Fitting Connection (A) Style
Compression
Pressure Connection Cross
1461-5/32
Fitting Connection (A) Thread Size
5/16-24
Shipping Weight
.1 lb.
Fitting Connection (A) Tube Size
5/32 in.
System of Measurement
Fractional
Fitting Material
Brass
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Style
Air Brake Nut
Thread Size
5/16"-24
Fitting Type
Compression Air Brake Fitting
Tube Outside Diameter
5/32 in.
Grade
CA360
Vibration Resistance
Fair
Hex Size
3/8 in.
Weatherhead Cross
1461x5/32
Material
Brass
Working Pressure
150
Product Description
- Typical Applications:
- Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Not lead free.
