APPROVED SUPPLIER

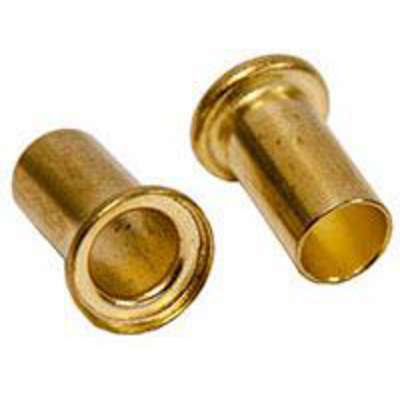

A/B - Nylon Tubing - Insert 3/8
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
90726
Compression Nut Torque Value
12 - 17 ft. lbs.
Package Quantity
50
DOT Approved
Yes
Pressure Connection Cross
1484-06
DOT Compression Fittings Type
Inserts
Shipping Weight
0.12 lb.
Fitting Connection (A) Style
A/B Tubing Insert
System of Measurement
Fractional
Fitting Connection (A) Tube Size
3/8 in.
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Style
Compression Fitting
Thread Size
17/32"-24
Fitting Type
Air Brake Fitting
Tube Outside Diameter
3/8 in.
Grade
CA360
Vibration Resistance
Fair
Insert Outside Diameter
.245 in.
Weatherhead Cross
1484X6
Material
Brass
Working Pressure
Up to 150 psi
Meets Standards
SAE and DOT FMVSS 571.106
Product Description
- Typical Applications:
- Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Not lead free.
- It is recommended to applied thread sealant to all pipe threads.
- Pipe threads are the most common fitting style used in the United States and Canada.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
A/B Insert 3/8
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1484X6 | A/B INSERT 3/8 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B INSERT 1484x6 |
