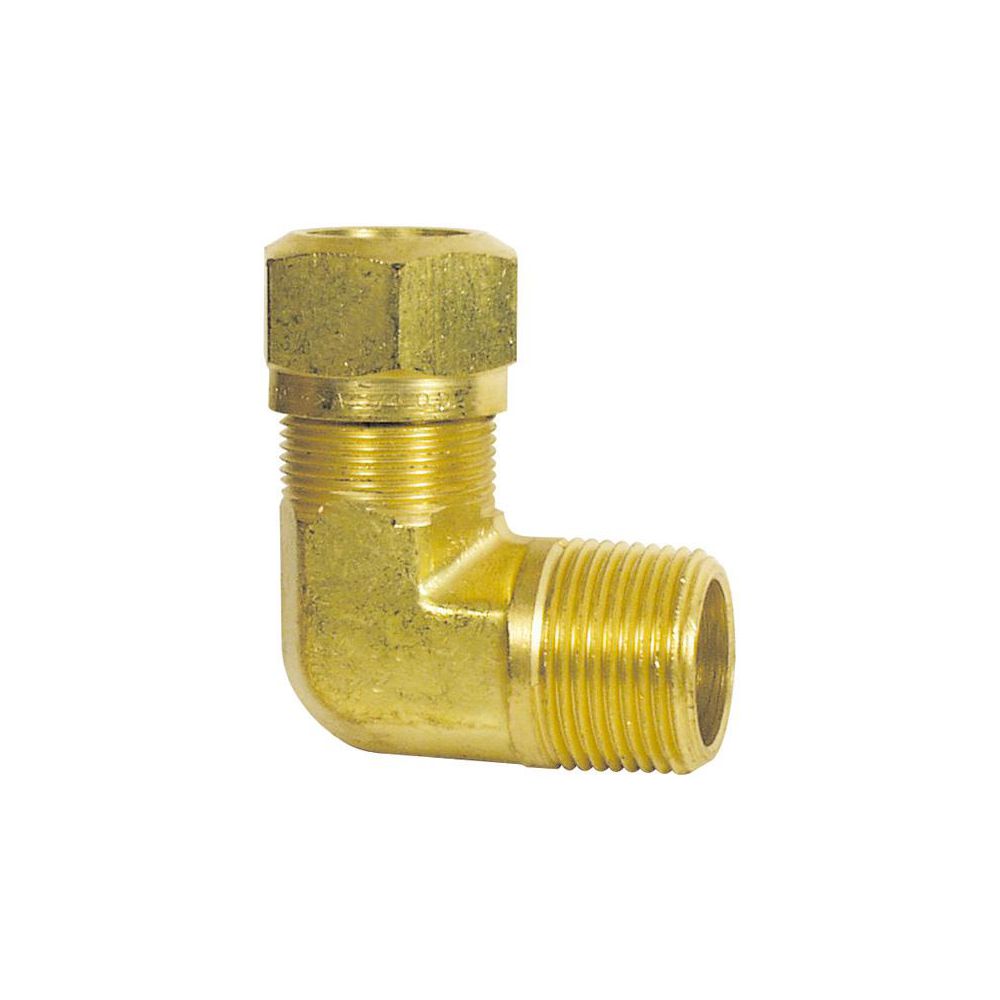

Brass, 90° Male Elbow, Air Brake Compression Fitting, 3/8 in. x 3/8 in.

Hover over image to magnify
A/B 90' Male Elb 3/8 X 3/8
A/B 90' Male Elb 3/8 X 3/8
Double tap image to magnify
A/B 90' Male Elb 3/8 X 3/8
A/B 90' Male Elb 3/8 X 3/8

#90699-2Pkg Qty: 5

In Stock

Shipping to 43085
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>Typical Applications: • Air brakes, instrumentation, air controls, air bags, and air seats. • Exceeds DOT pressure requirements for air brake systems.<br /> • For use with SAE J844 type A or B air brake tubing. • Not lead free. • It is recommended to always use thread sealant or tape on tapered pipe threads.<br /> • Pipe threads are the most common fitting style used in the United States and Canada. • Crosses References: Weatherhead 1469X6X6, Pressure Connections 1469-6-6, Parker VS269NTA-6-6, Tramec S769AB-6-6V, Tramec/CMI 969-6-6NSC, Tectran 1369-6C, Grainger 11G292</p>

Typical Applications: • Air brakes, instrumentation, air controls, air bags, and air seats. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J844 type A or B air brake tubing. • Not lead free. • It is recommended to always use thread sealant or tape on tapered pipe threads.
• Pipe threads are the most common fitting style used in the United States and Canada. • Crosses References: Weatherhead 1469X6X6, Pressure Connections 1469-6-6, Parker VS269NTA-6-6, Tramec S769AB-6-6V, Tramec/CMI 969-6-6NSC, Tectran 1369-6C, Grainger 11G292

Pkg Qty 5 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Angle
90 deg.
Grade
CA360
Brand
APPROVED SUPPLIER
Material
Brass
Compression Nut Torque
12 - 17 ft. lbs.
Meets Standards
SAE and DOT FMVSS 571.106
Connection Type
Male
Mfr. Part Number
90699-2
DOT Approved
Yes
Package Quantity
5
DOT Compression Fittings Type
Connectors
Pipe Thread
3/8 in.
Fitting Connection (A) Style
Compression
Pressure Connection Cross
1469-6-6
Fitting Connection (A) Thread Size
17/32-24
Shape
Elbow
Fitting Connection (A) Tube Size
3/8 in.
Shipping Weight
0.69 lb.
Fitting Connection (B) Gender
Male
System of Measurement
Fractional
Fitting Connection (B) Pipe Size
3/8 in.
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Connection (B) Style
NPTF Pipe
Thread Size
17/32"-24
Fitting Connection (B) Thread Size
3/8-18
Tube Outside Diameter
3/8 in.
Fitting Material
Brass
Vibration Resistance
Fair
Fitting Style
90° Male connector
Weatherhead Cross
1469x6x6
Fitting Type
Air Brake Fitting For Nylon Tubing
Working Pressure
150
General
For Use With
SAE J844 Type A or B nylon tubing

Product Description

Typical Applications: • Air brakes, instrumentation, air controls, air bags, and air seats. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J844 type A or B air brake tubing. • Not lead free. • It is recommended to always use thread sealant or tape on tapered pipe threads.
• Pipe threads are the most common fitting style used in the United States and Canada. • Crosses References: Weatherhead 1469X6X6, Pressure Connections 1469-6-6, Parker VS269NTA-6-6, Tramec S769AB-6-6V, Tramec/CMI 969-6-6NSC, Tectran 1369-6C, Grainger 11G292
