Technical Specifications
Brand
APPROVED SUPPLIER
Meets Standards
SAE and DOT FMVSS 571.106
Compression Nut Torque Value
25 - 33 ft. lbs.
Mfr. Part Number
90657
DOT Approved
Yes
Package Quantity
10
DOT Compression Fittings Type
Nuts
Pressure Connection Cross
1461-08
Fitting Connection (A) Style
Compression
Shipping Weight
0.52 lb.
Fitting Connection (A) Thread Size
11/16-20
System of Measurement
Fractional
Fitting Connection (A) Tube Size
1/2 in.
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Material
Brass
Thread Size
11/16"-20
Fitting Style
Air Brake Nut
Tube Outside Diameter
1/2 in.
Fitting Type
Compression Air Brake Fitting
Vibration Resistance
Fair
Grade
CA360
Weatherhead Cross
1461x8
Hex Size
13/16 in.
Working Pressure
150
Material
Brass
Product Description
- Typical Applications:
- Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Not lead free.
Frequently Bought Together
Currently Viewing

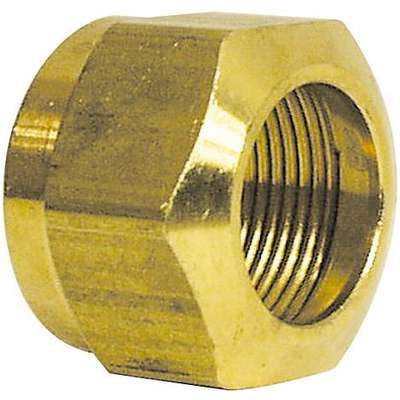

A/B Nut 1/2
| #90657 | Pkg Qty: 10
| #198-1 | Pkg Qty: 1
Expertly Selected Product Pairings
Available Assortments View All
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
A/B Nut 1/2
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1461X8 | A/B NUT 1/2 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B NUT 1461X8 |
