Brass, DOT Air Brake Male Connector for Rubber Hose 1/2 in. x 3/8 in.

Hover over image to magnify

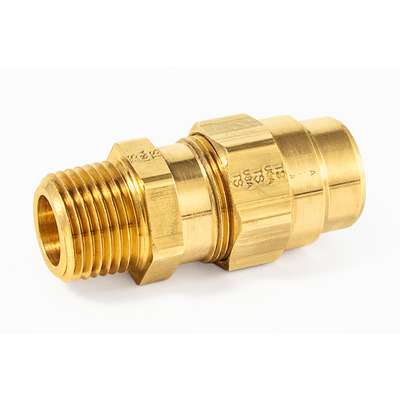

A/B Male Connector 1/2X3/8
PI_Asset_1088344
A/B Male Connector 1/2X3/8
PI_Asset_1088344

#90613 | Pkg Qty: 5

In Stock

Shipping to 60045
|
Catalog: G16

Technical Specifications

Key Specifications
Body Hex Size
1-1/8 in.
Item
Hose Connectors
Brand
APPROVED SUPPLIER
Male Pipe Thread
3/8 in.
Connection Type
Male
Material
Brass
DOT Approved
Yes
Maximum Working Pressure
225 PSI
DOT Rubber Hose Compression Fittings Type
Hose Connectors
Mfr. Part Number
90613
Fitting Connection (A) Hose Size
1/2 in.
Package Quantity
5
Fitting Connection (A) Style
Rubber Hose Compression
Replacement Sleeve
90611
Fitting Connection (B) Gender
Male
Shape
Hose Connectors
Fitting Connection (B) Pipe Size
3/8 in.
Shipping Weight
1.6 lb.
Fitting Connection (B) Style
NPTF Pipe
System of Measurement
Fractional
Fitting Connection (B) Thread Size
3/8-18
Tramec Sloan Cross
S368AB-8-6C
Fitting Material
Brass
Type
Male
Fitting Style
Hose Male Connector
Vibration Resistance
Good
Grade
CA360
Weatherhead Cross
338088-Y26
Hex Nut Size
1-1/4 in.
Working Pressure
Determined by maximum working pressure for hose size
Hose Inside Diameter
1/2 in.
General
For Use With
Rubber Air Brake Lines

Product Description

Typical Applications: • Air brakes, air controls, air bags, slider boxes, and air lines. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J1402 rubber air brake hose. • It is recommended to applied thread sealant to all pipe threads.
• Compression brass sleeve included.
• Reusable - Sleeve replacement required. • Crosses References: Parker 68RB-8-6, Weatherhead 338088-Y24, Tramec Sloan S368AB-8-6C, Tectran 106-8, Velvac 5000051

Expertly Selected Product Pairings

A/B Rubber Hose 1/2
Log In To See Pricing
Item: 90505 | Pkg Qty: 50
A/B Rubber Hose Nut 1/2
Log In To See Pricing
Item: 90610 | Pkg Qty: 10
A/B Rubber Hose Sleeve 1/2
Log In To See Pricing
Item: 90611 | Pkg Qty: 20
EC038 Dot A/B Hose - 1/2"
Log In To See Pricing
Item: 91129 | Pkg Qty: 50

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item
Lot Tracked Item Details
Item Barcode
0906130
A/B Male Connector 1/2X3/8
 NameItemDescription
WEATHERHEADWEATHERHEAD33808B-Y26A/B MALE CON NT 1/2x3/8
WEATHERHEADWEATHERHEADW33883A/B MALE CON NT 1/2x3/8
UNSPSC CODESUNSPSC CODES27131600Air fittings and connectors
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004A/H FIT 33808B-Y26
