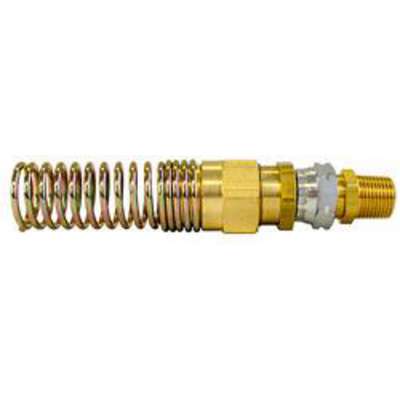

Brass, DOT Air Brake Male Connector Swivel W/Spring for Rubber Hose 3/8 in. x 1/2 in.

Name: Brass, DOT Air Brake Male Connector Swivel W/Spring for Rubber Hose 3/8 in. x 1/2 in.
Brand: TECTRAN
SKU: 0905940
Availability: InStock

Hover over image to magnify

#90594 | Pkg Qty: 5

In Stock

Shipping to 60045

Technical Specifications

Body Hex Size

31/32 in.

Hose Inside Diameter

3/8 in.

Brand

TECTRAN

Item

Hose Connector with Spring Guards

DOT Approved

Yes

Male Pipe Thread

1/2 in.

DOT Rubber Hose Compression Fittings Type

Hose Connectors

Maximum Working Pressure

225 PSI

Fitting Connection (A) Hose Size

3/8 in.

Mfr. Part Number

1104

Fitting Connection (A) Style

Rubber Hose Compression

Package Quantity

Fitting Connection (B) Gender

Male

Replacement Sleeve

90511

Fitting Connection (B) Pipe Size

1/2 in.

Shape

Hose Connector with Spring Guards

Fitting Connection (B) Style

NPTF Pipe

Shipping Weight

1.71 lb.

Fitting Connection (B) Thread Size

1/2-14

System of Measurement

Fractional

Fitting Material

Brass

Tramec Sloan Cross

N/A

Fitting Style

Hose Male Connector

Vibration Resistance

Good

Hex Nut Size

1-1/16 in.

Weatherhead Cross

N/A

Product Description

Typical Applications: • Air brakes, air controls, air bags, slider boxes, and air lines. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J1402 rubber air brake hose. • It is recommended to applied thread sealant to all pipe threads.
• Compression brass sleeve included.
• Reusable - Sleeve replacement required. • Crosses References: Tectran 1104
