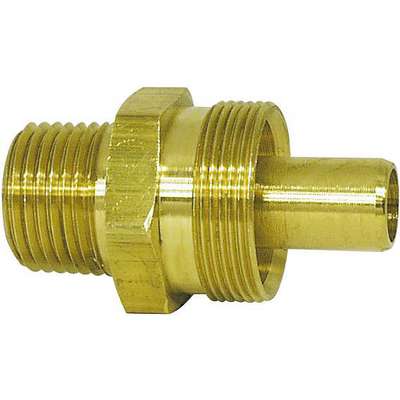

Brass, DOT Air Brake Insert Body for Rubber Hose 3/8 in. x 1/2 in.

Name: Brass, DOT Air Brake Insert Body for Rubber Hose 3/8 in. x 1/2 in.
Brand: APPROVED SUPPLIER
SKU: 0905240
Availability: OutOfStock

Hover over image to magnify

#90524 | Pkg Qty: 5

Not currently available. Call your service advisor for availability.

Shipping to 60045

Catalog: G17

Technical Specifications

Body Hex Size

31/32 in.

Item

Inserts

Brand

APPROVED SUPPLIER

Male Pipe Thread

1/2 in.

DOT Approved

Yes

Material

Brass

DOT Rubber Hose Compression Fittings Type

Inserts

Maximum Working Pressure

250 PSI

Fitting Connection (A) Hose Size

3/8 in.

Mfr. Part Number

90524

Fitting Connection (A) Style

Rubber Hose Compression

Package Quantity

Fitting Connection (B) Pipe Size

1/2 in.

Shape

Inserts

Fitting Connection (B) Pipe Thread Size

1/2-14 in.

Shipping Weight

.95 lb.

Fitting Material

Brass

System of Measurement

Fractional

Fitting Style

Hose insert

Tramec Sloan Cross

S368AB-6-8-1

Fitting Type

Rubber Hose Air Brake Fitting

Vibration Resistance

Good

Grade

CA360

Weatherhead Cross

1391X6X8

Hex Nut Size

1-1/16 in.

Working Pressure

Determined by maximum working pressure for hose size

Hose Inside Diameter

3/8 in.

Product Description

Typical Applications: • Air brakes, air controls, air bags, slider boxes, and air lines. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J1402 rubber air brake hose. • It is recommended to applied thread sealant to all pipe threads.
• Machined insert.
• Nut and insert needed for complete assembly. • Crosses References: Parker 68RB-6-8B, Weatherhead 1394x6x8, Tramec Sloan S368AB-6-8-1, Tectran 1040, Velvac 500003.

Frequently Bought Together

Currently Viewing

A/B Rubber Hose Insert 3/8X1/2

| #90524 | Pkg Qty: 5

Assort Ab Fittings Rubber Hose

| #230-1 | Pkg Qty: 1

Expertly Selected Product Pairings

Item: 90500 | Pkg Qty: 100

Rubber A/B Hose 3/8

Select

Item: 90510 | Pkg Qty: 10

A/B Rubber Hose Nut 3/8

Select

Item: 90511 | Pkg Qty: 20

A/B Rubber Hose Sleeve 3/8

Select

Item: 91128 | Pkg Qty: 50

EC038 Dot A/B Hose - 3/8"

Select

Available Assortments View All

Item: 230-1

Pkg Qty: 1

Assort Ab Fittings Rubber Hose

Compliance & Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Lot Tracked Item Details

Item Barcode

A/B Rubber Hose Insert 3/8X1/2

Cross References
Legal

Name	Item	Description
WEATHERHEAD	1391X6X8	A/B INSERT 3/8x1/2
WEATHERHEAD	W15992	A/B INSERT 3/8x1/2
UNSPSC CODES	27131600	Air fittings and connectors
VMRS (ATA) CODES	053-008-004	A/H INSERT 1391x6x8
