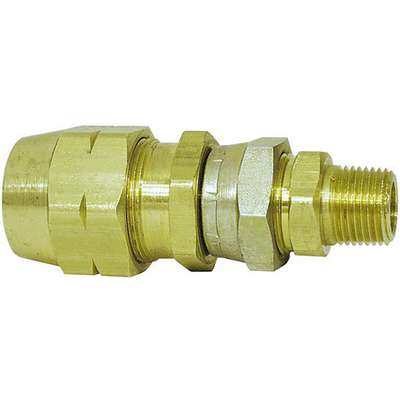

Brass, DOT Air Brake, Female Connector with ABS Adaptor for Rubber Hose 3/8 in. x 1/4 in.

Name: Brass, DOT Air Brake, Female Connector with ABS Adaptor for Rubber Hose 3/8 in. x 1/4 in.
Brand: APPROVED SUPPLIER
SKU: 0905210
Availability: InStock

Hover over image to magnify

#90521 | Pkg Qty: 5

In Stock

Shipping to 60045

Catalog: G17

Technical Specifications

Key Specifications

Body Hex Size

7/8 in.

Item

Hose Connector with Adapters

Brand

APPROVED SUPPLIER

Material

Brass

Connection Type

Female

Maximum Working Pressure

250

DOT Approved

Yes

Mfr. Part Number

90521

DOT Rubber Hose Compression Fittings Type

Hose Connectors

Package Quantity

Fitting Connection (A) Hose Size

3/8 in.

Pipe Thread

1/4"-18

Fitting Connection (A) Style

Rubber Hose Compression

Replacement Sleeve

90511

Fitting Connection (B) Pipe Size

1/4-18 in.

Shape

Hose Connector with Adapters

Fitting Connection (B) Style

ABS to Pipe

Shipping Weight

1.62 lb.

Fitting Connection (B) Thread Size

3/4-20

System of Measurement

Fractional

Fitting Material

Brass

Tramec Sloan Cross

S363RB-6-4C

Fitting Style

Hose Male Connector w/Adaptor

Type

Female

Fitting Type

Rubber Hose Air Brake Fitting

Vibration Resistance

Good

Grade

CA360

Weatherhead Cross

33806B-Y84

Hex Nut Size

31/32 in.

Working Pressure

H338 Hose

Hose Inside Diameter

3/8 in.

General

For Use With

Rubber Air Brake Lines

Product Description

Typical Applications: • Air brakes, air controls, air bags, slider boxes, and air lines. • Exceeds DOT pressure requirements for air brake systems.
• For use with SAE J1402 rubber air brake hose. • It is recommended to applied thread sealant to all pipe threads.
• Compression brass sleeve included.
• Includes ABS to male pipe adaptor. • Crosses References: Weatherhead 33806B-Y84, Tramec Sloan S363RB-6-4s, Tectran 1106-8, Velvac 500094. Grainger 32WG42
