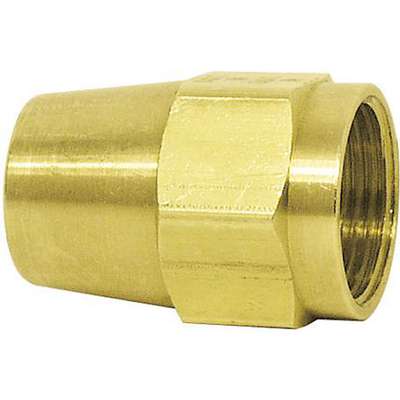

1361 X 8 Air Brake Nut Brass Fitting
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
90411
Copper Tubing DOT Air Brake Fittings Type
Nuts
Package Quantity
20
DOT Approved
Yes
Shipping Weight
2 lb.
Fitting Type
Air Brake Fitting for Copper Tubing
System of Measurement
Fractional
Grade
CA360
Thread Size
11/16"-20
Hex Size
13/16 in.
Tube Outside Diameter
1/2 in.
Item
Air Brake Nut
Vibration Resistance
Fair
Material
Brass
Working Pressure
Up to 150 psi
Product Description
Air Brake Nut 1/2
- Compression Nut Air Brake Fitting For Copper Tubing.
- Use With Copper Tubing In Air Brake Systems. These Fittings May Also Be Used With Nylon Air Brake Tubing When Assembled With Tubing Inserts.
- Exceeds DOT Pressure Requirements For Air Brake Systems.
- Meets Sae, Dot, And Mil. Standards And Specifications.
- Fair Resistance To Vibration.
- Temperature Range: -65° F. To 250° F.
- To Assemble, Turn 1-3/4 Turns Past Hand Tight For 1/4 And 3/8 Sizes And 3-1/4 Turns For 1/2, 5/8, And 3/4 Sizes.
- Easy To Assemble, Tubing Does Not Have To Flared Or Bent.
- Exceeds Pressure Requirements Of Automotive Air Brake Systems.
- Applications: Air Brake Systems, Air Control, And Air Brake Lines.
- Tube Outside Diameter: 1/2
- Thread Size: 11/16-20
- Cross Reference: 1361 X 8
Available Assortments View All
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
A/B Nut 1/2
| Name | Item | Description | |
|---|---|---|---|
 | WEATHERHEAD | 1361X8 | A/B COMP NUT 1361X8 |
| WEATHERHEAD | W03755 | A/B COMP NUT 1361X8 |
 | UNSPSC CODES | 27131600 | Air fittings and connectors |
 | VMRS (ATA) CODES | 053-008-004 | A/B COMP NUT 1361X8 |
