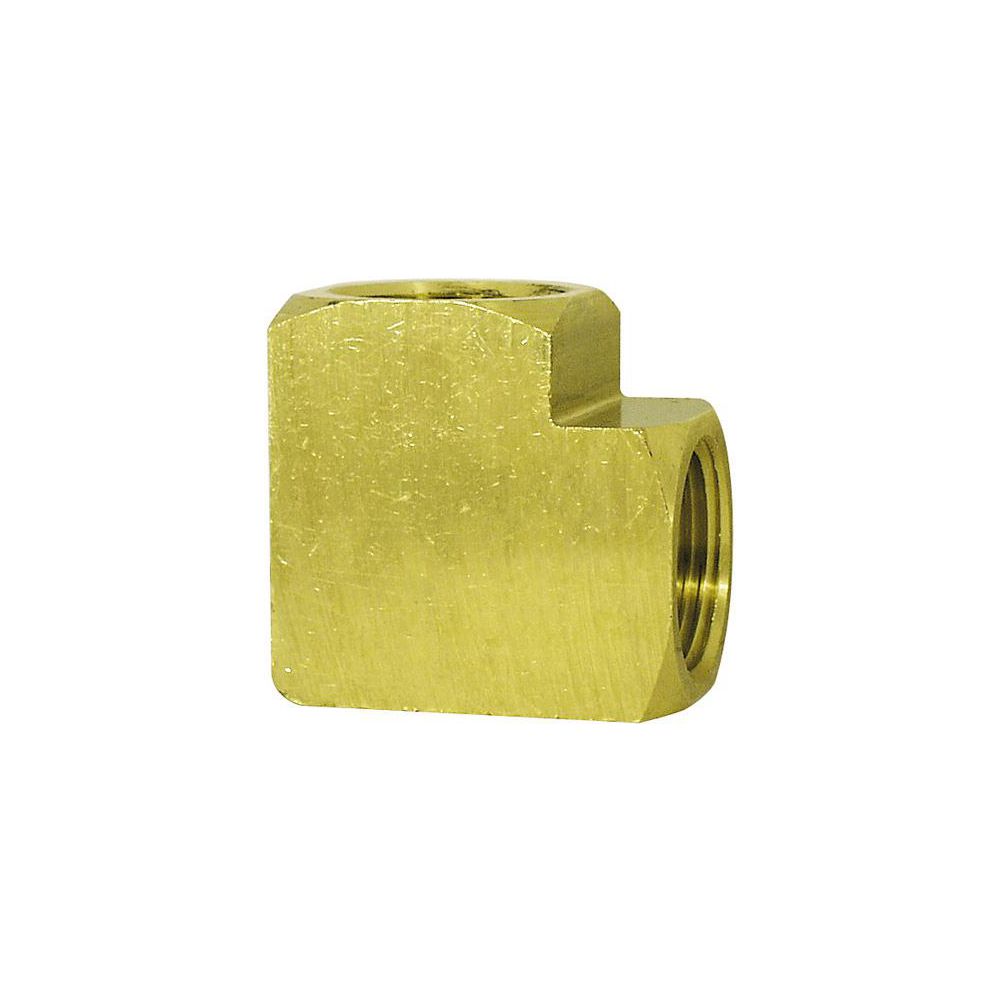

Brass Female 90° Pipe Elbow 3/8 in.

Hover over image to magnify
Pipe 90° Elbow 3/8
Pipe 90° Elbow 3/8
Double tap image to magnify
Pipe 90° Elbow 3/8
Pipe 90° Elbow 3/8

#90380-2Pkg Qty: 5

In Stock

Shipping to 43085
|

Technical Specifications

Key Specifications
Angle
90 deg.
Fitting Thread Size
3/8"-18
Body Material
Brass
Hex Size
13/16
Brand
APPROVED SUPPLIER
Item
Elbow
Cross Reference
3500 x 6
Mfr. Part Number
90380-2
Fitting Connection (A) Gender
Female
Package Quantity
5
Fitting Connection (A) Pipe Size
3/8 in.
Pipe Size
3/8 in.
Fitting Connection (A) Pipe Thread Size
3/8-18
Plating
None
Fitting Connection (A) Style
NPTF Pipe
Pressure Connection Cross
28-003
Fitting Connection (B) Gender
Female
Shipping Weight
.95 lb.
Fitting Connection (B) Pipe Size
3/8 in.
System of Measurement
Fractional
Fitting Connection (B) Pipe Thread Size
3/8-18 in.
Temperature Range (Deg. F)
-65 to +250 deg. F
Fitting Connection (B) Style
NPTF Pipe
Vibration Resistance
Good
Fitting Material
Brass
Weatherhead Cross
3500X6
Fitting Style
Elbows
Working Pressure
Up to 1,200 psi
General
Standards
Meet or exceed ASA, ASME, SAE

Product Description

Typical Applications: Gasoline, instrumentation, power steering, air brake, pneumatic, diesel, propane, and natural gas lines. • It is recommended to always use thread sealant or tape on tapered pipe threads.
• Tapered pipe thread seal on wedging contact between threads. The more you tighten the tighter the seals.
• Pipe threads are the most common fitting style used in the United States and Canada. • The difference between NPT and NPTF is the root and crest tolerances. • Imperial pipe fittings are made to NPTF (National Pipe Thread Fuel) specifications.
