Inverted Flare Long Nut 1/8 in.

Hover over image to magnify

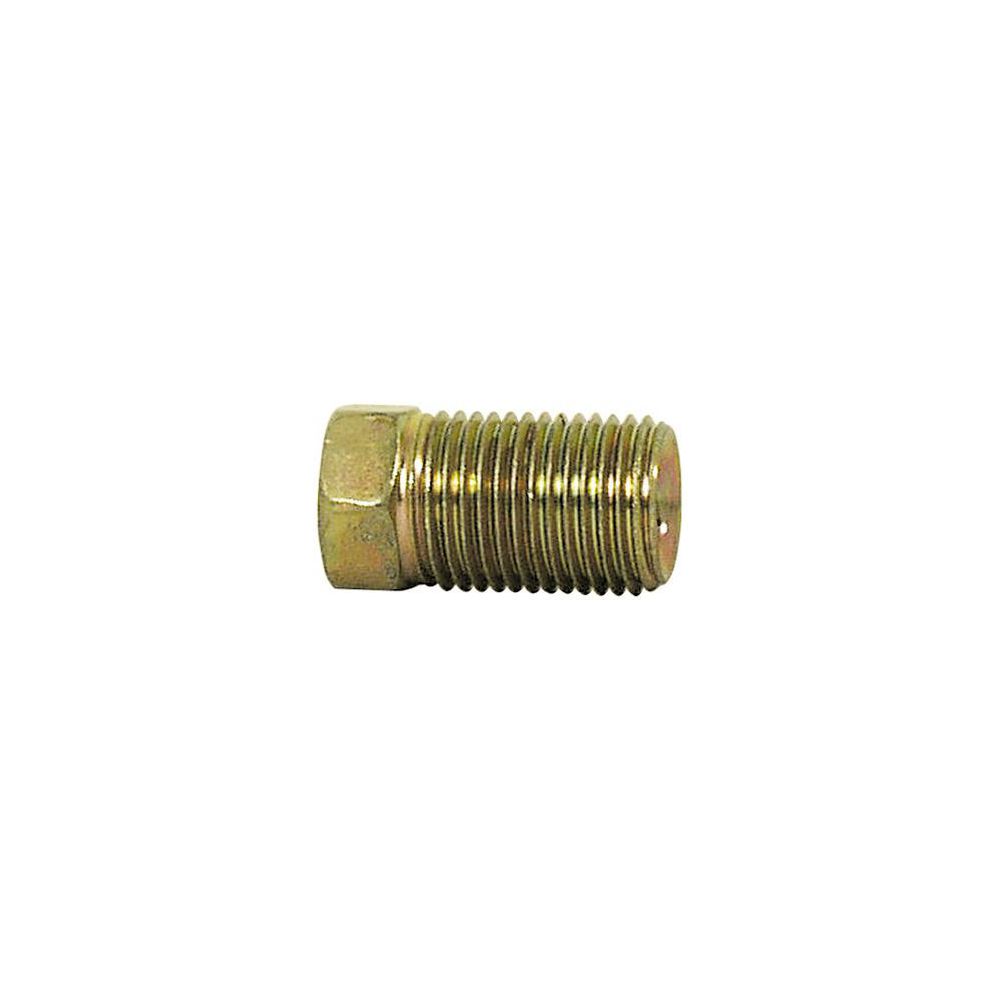

Inverted Flr Stl Long Nut 1/4
Inverted Flr Stl Long Nut 1/4
Double tap image to magnify
Inverted Flr Stl Long Nut 1/4
Inverted Flr Stl Long Nut 1/4

#90009Pkg Qty: 10

Not currently available. Call your service advisor for availability.

Shipping to 43085
|
Catalog: F22

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
90009
DOT Approved
No
Package Quantity
10
Fitting Connection (A) Gender
Male
Plating
Yellow Trivalent
Fitting Connection (A) Pipe Size
1/4 in.
Pressure Connection Cross
2105-10
Fitting Connection (A) Style
Inverted
Shipping Weight
.18 lb.
Fitting Connection (A) Thread Size
7/16-24
System of Measurement
Fractional
Fitting Material
Brass
Temperature Range (Deg. F)
-65 to +250 deg. F
Fitting Style
Union
Thread Size
7/16"-24
Fitting Type
Flared Fitting
Tube Flare
Inverted
Grade
CA360
Tube Outside Diameter
1/4 in.
Head Size
7/16
Type
Nut
Hex Size
7/16 in.
Vibration Resistance
Excellent
Item
Inverted Flare Fittings
Weatherhead Cross
7896X4
Material
Steel
Working Pressure
Up to 2,000 psi depending on tube size.
Meets Standards
ASA, ASME, SAE
General
For Use With
Brass, Steel, Copper Tube Assy

Product Description

  • For Use with hydraulic brake, transmission, fuel lines, and power steering lines.
  • Working pressure of fittings are determined by tube thickness used.
  • Use on inverted flare tube fittings that conform to ASME, SAE, and Mil. specifications.
  • Use with copper, brass, aluminum, and steel tubing that can be flared.
  • Excellent vibration resistance.
  • Inverted flared fitting seats by the contact between the male and female flared surfaces.
