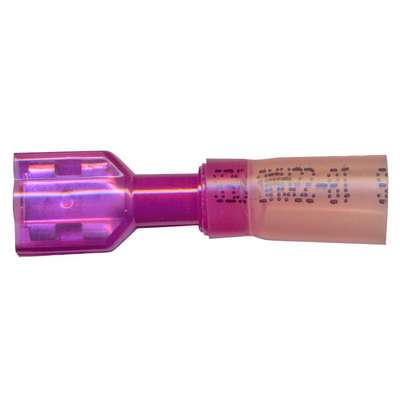

Imperial Seal-A-Crimp Niac Sealed Heat Shrink Female Quick Disconnect, Red, 20-18 Awg

Hover over image to magnify
Sealed Red Female Qk Ds
Sealed Red Female Qk Ds
Imperial Seal-A-Crimp Niac Sealed Heat Shrink Female Quick Disconnect, Red, 20-18 Awg Video
Double tap image to magnify
Sealed Red Female Qk Ds
Sealed Red Female Qk Ds
kABwxa6XzaI

#80200Pkg Qty: 50

In Stock

Shipping to 43085
|
Catalog: E2

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<h6 id="sealacrimppremiuminsulatedquickdisconnectterminal">Seal-A-Crimp® Premium Insulated Quick Disconnect Terminal</h6> <ul> <li>A Totally Environmental Sealed Terminal Connection. </li> <li>Simply Crimp And Heat. A Special Polyolefin Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal. </li> <li>Tubing Will Not Shrink In Length, Providing Additional Insulation And Strain Relief. </li> <li>Brazed Seam Connector Prevents Opening Of Connector Barrel When Crimped. </li> <li>Operating Temperature Range: -55 C. To 110 C. </li> <li>Style: Female </li> <li>Color: Red </li> <li>Wire Range: 20-18 </li> <li>Tab Size: Width: .250, Thickness: .030</li> </ul>
Seal-A-Crimp® Premium Insulated Quick Disconnect Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Polyolefin Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • Tubing Will Not Shrink In Length, Providing Additional Insulation And Strain Relief.
  • Brazed Seam Connector Prevents Opening Of Connector Barrel When Crimped.
  • Operating Temperature Range: -55 C. To 110 C.
  • Style: Female
  • Color: Red
  • Wire Range: 20-18
  • Tab Size: Width: .250, Thickness: .030
Pkg Qty 50 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Brand
IMPERIAL
Mfr. Part Number
KS66-18-250F
Color Family
Red
Operating Temperature
230deg. F
Connection Material
Copper
Package Quantity
50
Connection Type
Crimp
Shipping Weight
0.13 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Heat Shrink Terminal Connector
Female Quick Disconnect
Temperature Range (Deg. F)
-67 to +257 deg. F
Insulation Material
NiAc
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
20-18 AWG
Item
Heat Shrink Terminal

Product Description

Seal-A-Crimp® Premium Insulated Quick Disconnect Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Polyolefin Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • Tubing Will Not Shrink In Length, Providing Additional Insulation And Strain Relief.
  • Brazed Seam Connector Prevents Opening Of Connector Barrel When Crimped.
  • Operating Temperature Range: -55 C. To 110 C.
  • Style: Female
  • Color: Red
  • Wire Range: 20-18
  • Tab Size: Width: .250, Thickness: .030
