Grote DOT Coiled Air Brake Assembly Blue 15 ft. with 40 in. and 12 in. Leads, 1/2 in. Tubing

Hover over image to magnify

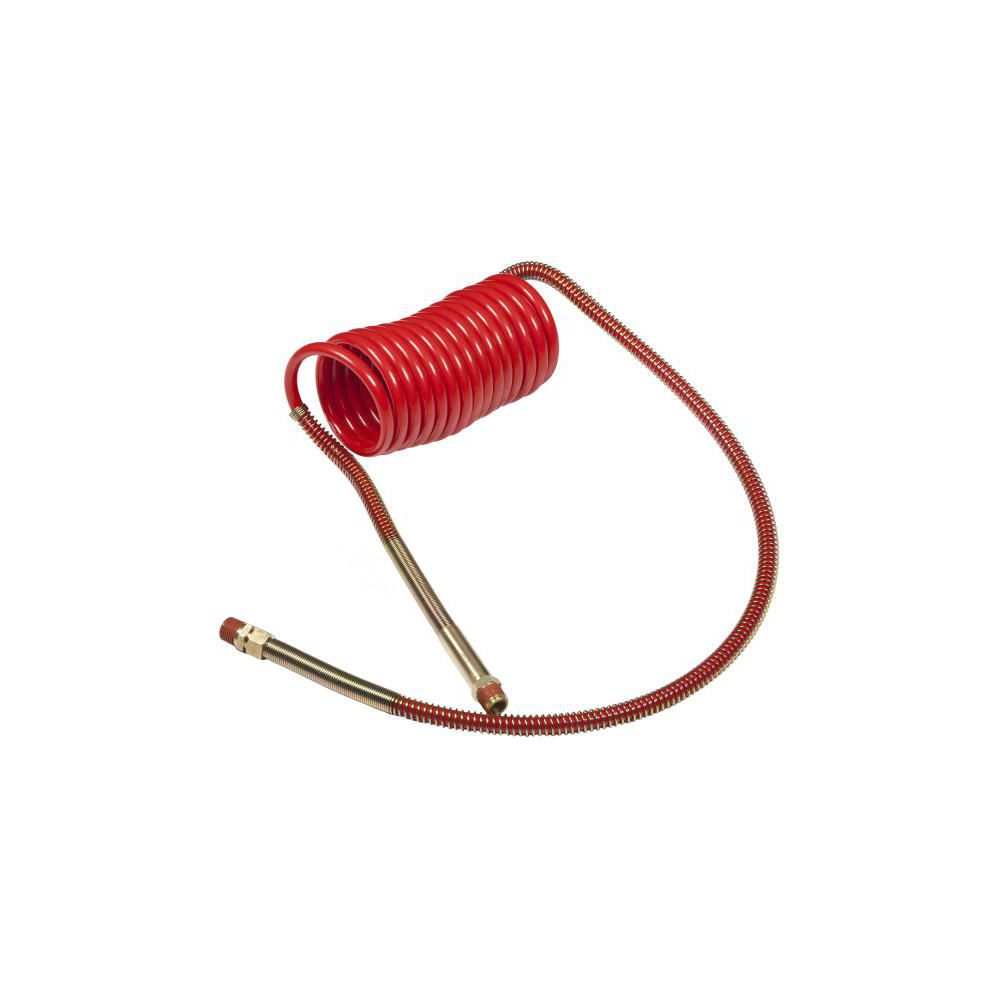

15' Air Coil Red 12&40" Leads
15' Air Coil Red 12&40" Leads
Double tap image to magnify
15' Air Coil Red 12&40" Leads
15' Air Coil Red 12&40" Leads

#78920Pkg Qty: 1

$45.24 pkg | $45.24 ea

In Stock

Shipping to 43085
|

Technical Specifications

Air Brake Assembly Style
Coiled
Fitting Material
Brass
Assembly Set
Yes
Hose Color
Red
Bend Radius
2 in.
Item
Air Brake Assembly
Brand
GROTE
Material
Nylon
Burst Pressure
950 psi
Maximum Working Pressure
150 psi
Coil Length
15 ft.
Mfr. Part Number
81-0015-40HR
Color Family
Red
Operating Temperature
-40°C (-40°F) to +104°C (+220°F)
Conditions
Standard
Package Quantity
1
Fitting Connection (A) Gender
Male
Pipe Thread
1/2 in.
Fitting Connection (A) Pipe Size
1/2 in.
Shipping Weight
2.37 lb.
Fitting Connection (A) Style
NPTF
System of Measurement
Fractional
Fitting Connection (A) Thread Size
1/2-14
Tramec Sloan Cross
451039NR
Fitting Connection (A) Tractor Lead Length
12 in.
Tube Outside Diameter
1/2 in.
Fitting Connection (B) Gender
Male
Tubing Dash Size
8
Fitting Connection (B) Pipe Size
1/2 in.
Tubing Material
Nylon
Fitting Connection (B) Style
NPTF
Tubing Outside Diameter
1/2 in.
Fitting Connection (B) Thread Size
1/2-14
Working Length
15 ft.
Fitting Finish
Plain

Product Description

Typical Applications: • Air brakes, tractors, trailers, yard horses, and slider boxes. • Exceeds DOT, FMVSS 106, and SAE J1402A standards pressure requirements for air brake systems.
• Coiled tubing eliminates the need for spring hangers and pogo sticks.
• Color identifying tubing reduces hook up mistakes, red tube used for emergency and blue tube used for service brakes.
• Crosses References: Grote 810015-40HB, Grainger 32WF92, Tramec 451039NB, Crawford 33039B, Phillips 11-339, Tectran 16215-040B, Velvac 022009
