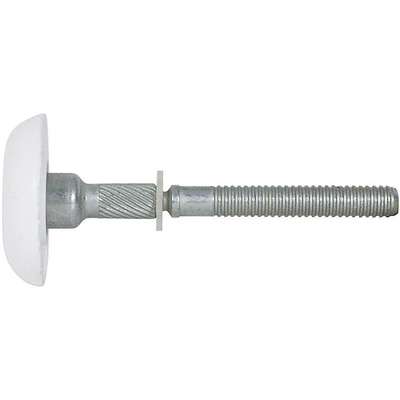

Huck Hucktainer HLPEW-R12-9PL, 3/8" Diameter FRP Lockbolt Pin, Standard Wide Bearing Head, White, Grip Range 0.500 - 0.625", Grade 2 Steel, Zinc Clear, Thick/FRP Cladding, 50 PK
Hover over image to magnify
#78330 | Pkg Qty: 50
Not currently available. Call your service advisor for availability.
Shipping to 60045
Catalog: C16
Technical Specifications
Brand
APPROVED SUPPLIER
Material
Grade 2 Steel
Diameter
3/8
Maximum Head Diameter
1.22 in.
Finish
Zinc Clear
Maximum Head Thickness
0.325 in.
Head Color
White
Mfr. Part Number
78330
Head Diameter
1.22 in.
Package Quantity
50
Head Style
Standard Wide Bearing
Shipping Weight
2.3 lb.
Item
Hucktainer
Trade Name
HUCKTAINER
Product Description
Hucktainer Wide Bearing, Encapsulated Head Fastener
- Includes Pin-Lock Pin Retainer.
- Designed To Meet The Requirements Of The Truck Body And Trailer Industries.
- Hucktainers Provide A High Strength, Vibration Resistant, Tamper Proof, Uniform Clamp.
- These Fasteners Will Not Crush Or Craze Frp (Fiberglass Reinforced Plywood) Panels And Are Available With Encapsulated Heads For Maximum Corrosion Resistance.
- Pvc Foam Sealant Under The Head Of The Pin Creates A Weatherproof Seal.
- Pin-Lock Is A Nylon "Star" That Retains The Pin In The Hole Prior To Installation And Are Included On Imperial Hucktainers With The "Pl" Suffix On The Huck Reference Number.
- Note: Only Wide Bearing Pin (Hlpe) And/Or Wide Bearing Sleeve (Hlps) Should Be Used Directly Against Frp.
- Grip Range: .500 - .625
- Head Color: White
- Maximum Head Diameter: 1.210
- Maximum Head Thickness: .325
- Under Head To Tip Length:
- Collar Length:
- Huck Cross Reference: Hlpew-R12-9Pl
- Other Grip Ranges, Encapsulated Head Colors, And/Or Encapsulated Head Sizes Available In Bulk Requests.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Cobalt sulfate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Hucktainer .500-.625 Grip Wht
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31162207 | HUCKTAINER HLPEWR1213PL |
 | VMRS (ATA) CODES | 053-007-014 | HUCKTAINER HLPEWR1213PL |
