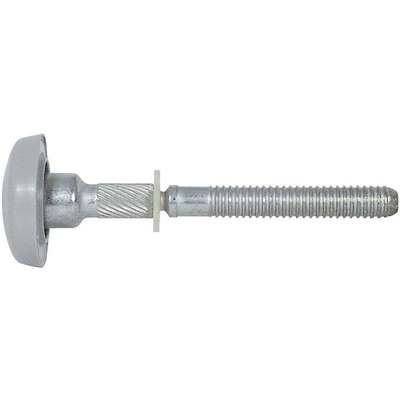

Huck Hucktainer HLPMG-R12-12PL, 3/8" Diameter FRP Lockbolt Pin, Standard Medium Bearing Head, Gray, Grip Range 0.687 - 0.812", Grade 2 Steel, Zinc Clear, Thick/FRP Cladding, 50 PK
Hover over image to magnify
Technical Specifications
Body Length
2.36 in.
Head Style
Medium Bearing
Brand
APPROVED SUPPLIER
Item
Hucktainer
Collar Diameter
3/4 in.
Material
Grade 2 Steel
Diameter
3/8
Maximum Head Thickness
0.325 in.
Finish
Zinc Plated
Mfr. Part Number
78322
Grip Range
0.687 in. to 0.812 in.
Package Quantity
50
Head Color
Gray
Shipping Weight
3.35 lb.
Head Diameter
0.95 in.
Trade Name
HUCKTAINER
Product Description
Hucktainer® Medium Bearing, Encapsulated Head Fastener
- Includes Pin-Lock Pin Retainer.
- Designed To Meet The Requirements Of The Truck Body And Trailer Industries.
- Hucktainers Provide A High Strength, Vibration Resistant, Tamper Proof, Uniform Clamp.
- These Fasteners Will Not Crush Or Craze Frp (Fiberglass Reinforced Plywood) Panels And Are Available With Encapsulated Heads For Maximum Corrosion Resistance.
- Pvc Foam Sealant Under The Head Of The Pin Creates A Weatherproof Seal.
- Pin-Lock Is A Nylon "Star" That Retains The Pin In The Hole Prior To Installation And Are Included On Imperial Hucktainers With The "Pl" Suffix On The Huck Reference Number.
- Note: Only Wide Bearing Pin (Hlpe) And/Or Wide Bearing Sleeve (Hlps) Should Be Used Directly Against Frp.
- Grip Range: .687 - .812
- Hole Size: .405 - .421
- Head Color: Gray
- Maximum Head Diameter: .950
- Maximum Head Thickness: .325
- Collar Diameter: .396 &Plusmn; .006
- Under Head To Breakpoint Length: .749
- Under Head To Tip Length: 2.357
- Collar Length: .145
- Huck Cross Ref. Hlpmg-R12-12Pl
- Other Grip Ranges, Encapsulated Head Colors, And/Or Encapsulated Head Sizes Available In Bulk Requests.
- Cross Reference: HLPMG-R12-12PL
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Cobalt sulfate, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Hucktainer .687-.812 Grip Grey
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31162207 | HUCKTAINER HLPMGR1212PL |
 | VMRS (ATA) CODES | 053-007-014 | Rivet |
