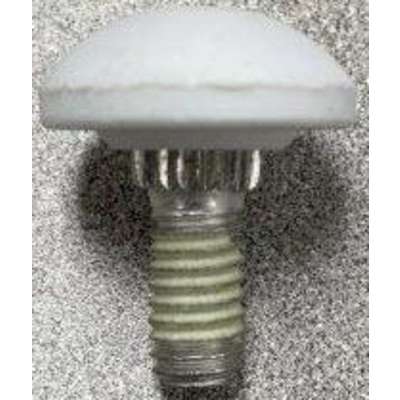

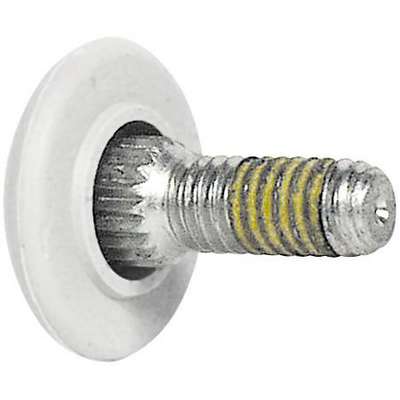

Frp Bolt 5/16 .875 White, 100 PK
Hover over image to magnify
Technical Specifications
Body Length
7/8 in.
Length Under Head
7/8 in.
Brand
APPROVED SUPPLIER
Material Grade/Class
5.1
Head Color
White
Mfr. Part Number
75940
Head Diameter
0.97 in.
Package Quantity
100
Head Style
Encapsulated Head
Shipping Weight
4.6 lb.
Item
FRP Bolt
Thread Size
5/16"-18
Product Description
White Encapsulated Head Frp Bolt
- Frps Are A High Performance Bolt And Nut Combination For Fastening Fiberglass Reinforced Plywood (Frp) To Steel Framing Rails In Frp Trailer And Body Applications.
- They Are Designed To Solve Fastening Problems Unique To The Truck/Trailer Industry.
- Cold Formed And Heat Treated For Greater Structural Strength- Grade 5.1
- 6-Lobe Drive Flanged Nut Permits High Torque And Easy Field Service.
- Special Molded Collar Provides Positive Sealing.
- Easy One-Person Installation Without Expensive Tooling.
- Head Diameter: .970
- Bolt Length: 0.875
- Thread Size: 5/16-18
- Cross Reference: F6719580-963001
- Grip Range: 5/16-18 X .875
- Grip Range When Using Camtainer® Nut, Part No. 75942 : .785 - .870
- Grip Range When Using Camtainer® Nut, Part No. 75943 : .855 - 1.095
Item Barcode
Frp Bolt 5/16 .875 White
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31161600 | |
 | VMRS (ATA) CODES | 053-007-005 | FRP BOLT WHITE.875 |
