GESIPA

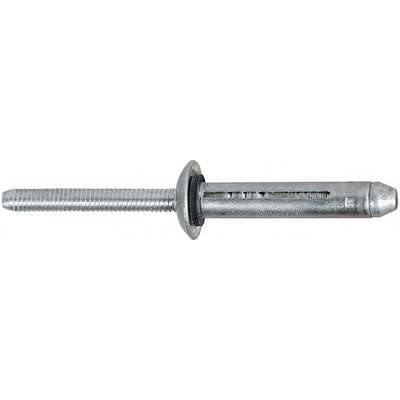

Gesipa Bulb-Tite 1/4" Diameter Rivet, Aluminum Body/Aluminum Mandrel, Grip Range 0.25-0.5", 500 PK
Hover over image to magnify
#75378 | Pkg Qty: 500
Not currently available. Call your service advisor for availability.
Shipping to 60045
Catalog: C9
Technical Specifications
Key Specifications
Blind Rivet Head Style
Low Profile
Rivet Body Material
Aluminum
Brand
GESIPA
Rivet Diameter
1/4 in.
Grip Range
0.25 in. to 0.5 in.
Rivet Length
1.065 in.
Item
Blind Rivet
Shear Strength
1100 psi
Mandrel Material
Aluminum
Shipping Weight
5 lb.
Maximum Grip
1/2 in.
System of Measurement
Fractional
Mfr. Part Number
1439154
Tensile Strength
575 lb.
Minimum Grip
1/4 in.
Trade Name
BULB-TITE
Package Quantity
500
Washer Material
EPDM
General
Blind Rivet Type
Tri-Fold
Product Description
Gesipa® Bulb-Tite® Nail Rivet
- Aluminum Rivet/Aluminum Mandrel.
- The Three Large Bulbs On The Blind Side Distribute The Load Over A Large Area To Avoid Damage To Plastics, Fiberglass, Wood, And Other Sensitive Materials.
- Fastens Thick Or Thin Materials And Will Not Strip Out.
- Mandrel Breaks Flush With Head And Requires A Special Nose Tip.
- Gives The Appearance Of A Solid Or Bucked Rivet.
- Contains A Epdm Washer Under The Head For Weather Resistance.
- Diameter: 1/4
- Grip Range: .250 - .500
- Head Diameter: .543
- Length Under Head: 1-1/4
- Shear: 1,100
- Tensile: 675
- Cross Reference: Rv6606-8-8W
- Use Power Riveter Gha 743 For Installation.
- Special Nose Piece, Part No. 75299 Required For Installation.
- Equivalent Alternative: Part No. 76433
Item Barcode
RV6606-8-8W 1/4"D X 1/2G
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31162201 | BULBTITE 1/4 RV6606-8-8W |
 | VMRS (ATA) CODES | 053-007-014 | BULBTITE 1/4 RV6606-8-8W |
