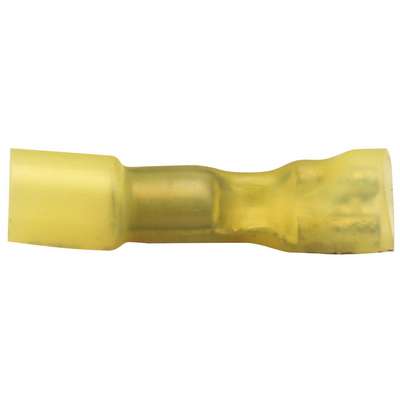

Solder & Seal Female Quick Disconnect Terminal, Yellow, 12-10 Awg

Hover over image to magnify
Solder Sealed Yel Fm Qk Ds
Solder Sealed Yel Fm Qk Ds

#74566 | Pkg Qty: 50

In Stock

Shipping to 60045
|

Technical Specifications

Brand
APPROVED SUPPLIER
Package Quantity
50
Color Family
Yellow
Shipping Weight
0.25 lb.
Connection Material
Plated Copper
Solder Seal Connector
Female Quick Disconnect
Connection Type
Solder and Seal
Temperature Range (Deg. C)
-55 to +110 deg. C
Insulation Material
Polyolefin
Temperature Range (Deg. F)
-67 to +230 deg. F
Item
Terminal
Voltage
600 V
Mfr. Part Number
ELF6-10FF
Wire Gauge
12-10 AWG

Product Description

Solder Seal Quick Disconnect Terminal
  • Fluxed Solder Ring Melts And Flows When Heated, Which Strengthens The Connector.
  • Complete Waterproof Connection.
  • Sleeves Are Color-Coded For Fast Identification.
  • No Special Tools Required.
  • Temperature Rating Of Installed Splice: -65 F. To 275 F.
  • Style: Female
  • Wire Range: 12-10
  • Color: Yellow
  • Tab Size: Width: .250, Thickness: .030

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SDS Available
SDS Available View | Download
Item Barcode
0745660
Solder Sealed Yel Fm Qk Ds
 NameItemDescription
UNSPSC CODESUNSPSC CODES39121432SOLDER SEAL TERMINAL
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002SOLDER SEAL TERMINAL
